IRC-F Series — Single & Twin Tube Clamps
Quartz Lamp Fixtures
A complete range of IRC-F series clamps and fixtures designed for secure installation of both single tube and twin tube infrared quartz heating lamps. Available for all standard tube diameters with both rectangular and round ceramic cap designs.
Features
- IRC-F1 through IRC-F13 — 13 clamp models available
- Compatible with single tube and twin tube lamps
- Supports all standard tube diameters
- Rectangular ceramic cap clamps
- Round ceramic cap clamps
- Single tube clamps
- Twin tube 23×11mm clamps
- Twin tube 33×15mm clamps
Technical Charts

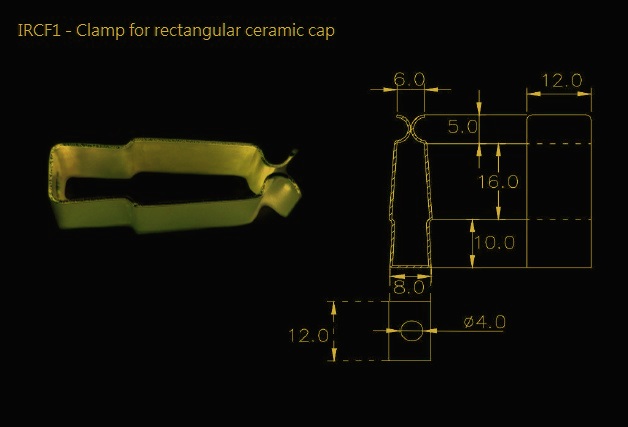

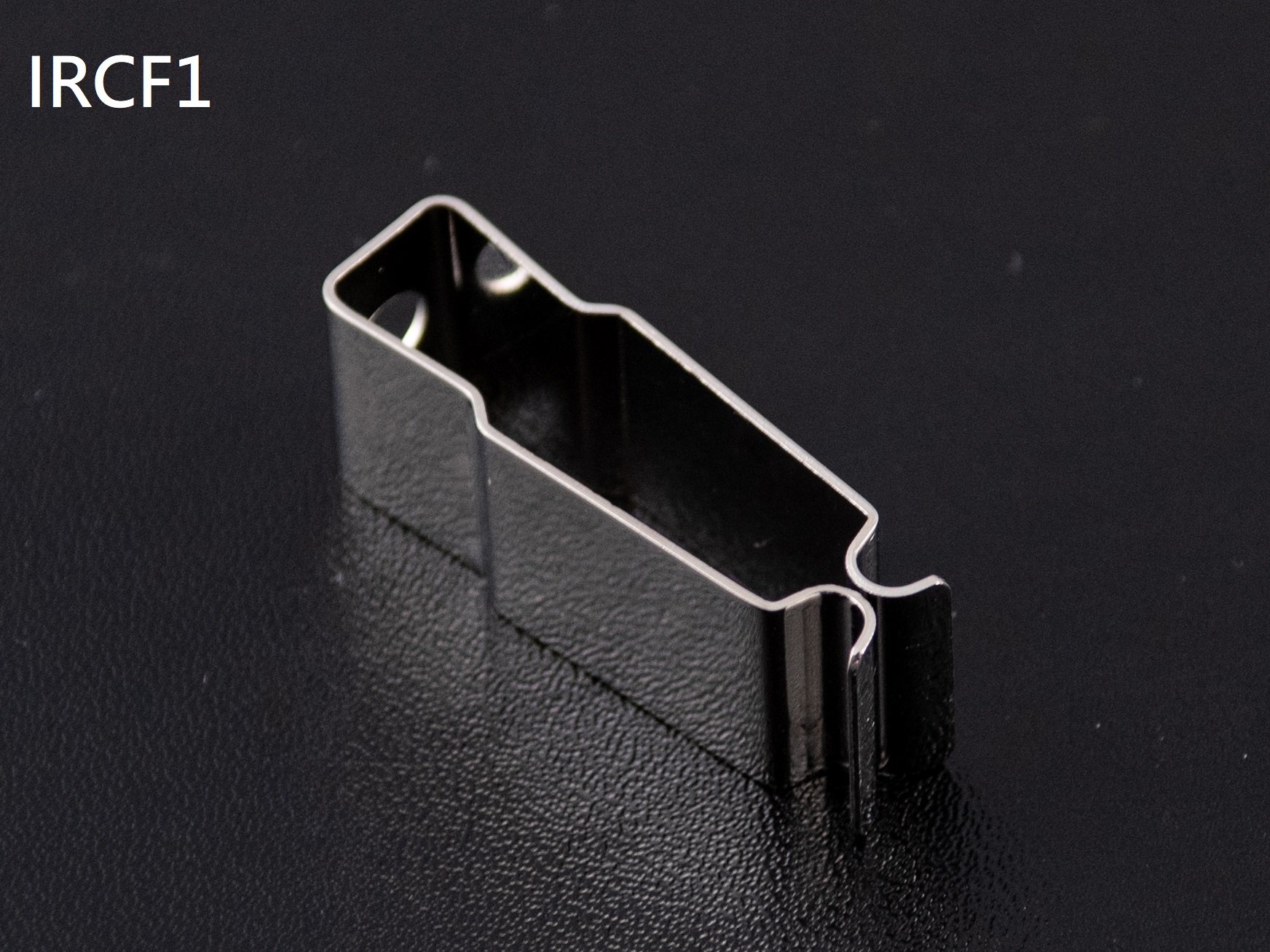

Quartz Lamp Fixtures - IRCF1 - Clamp for rectangular ceramic cap

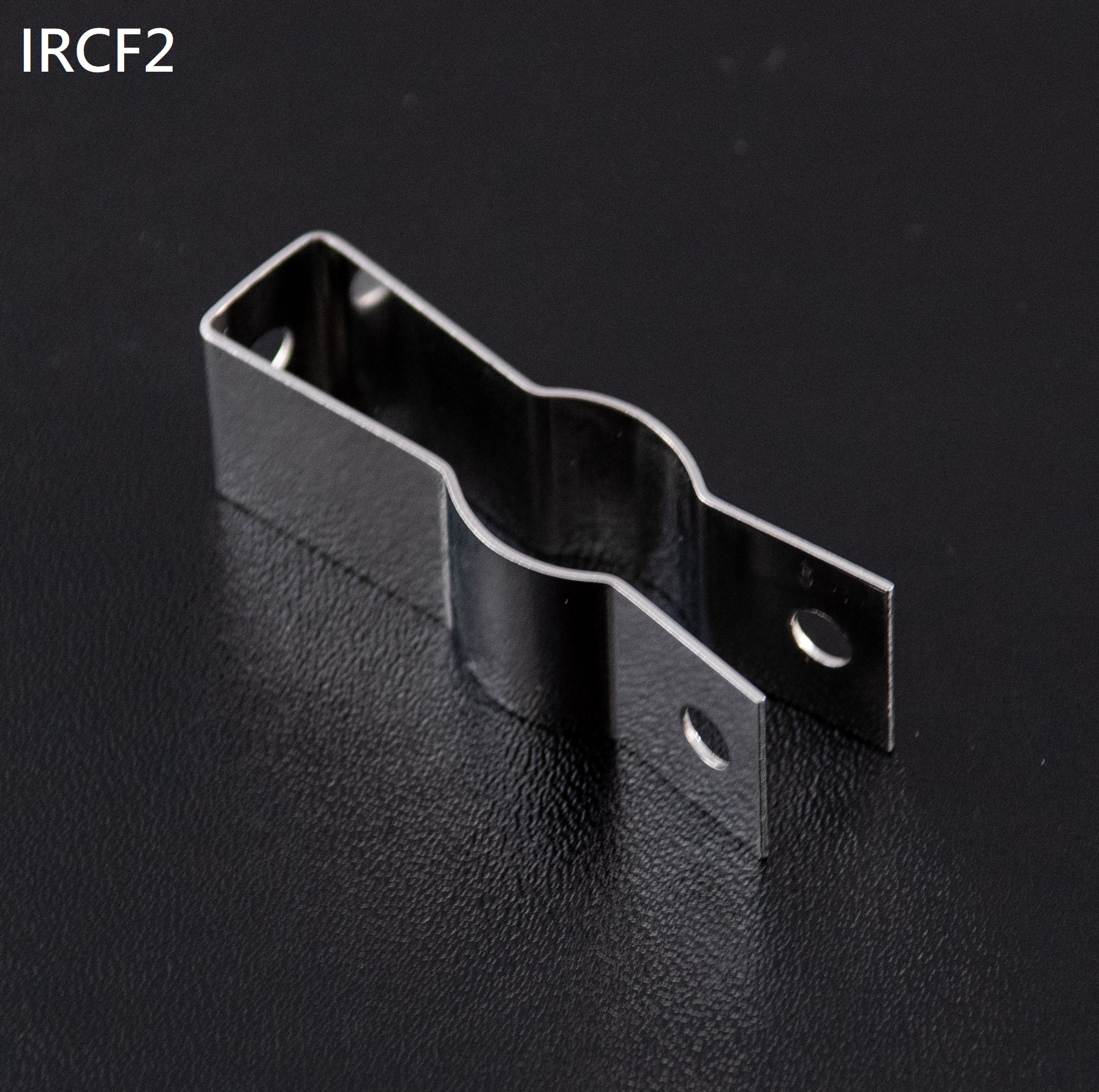

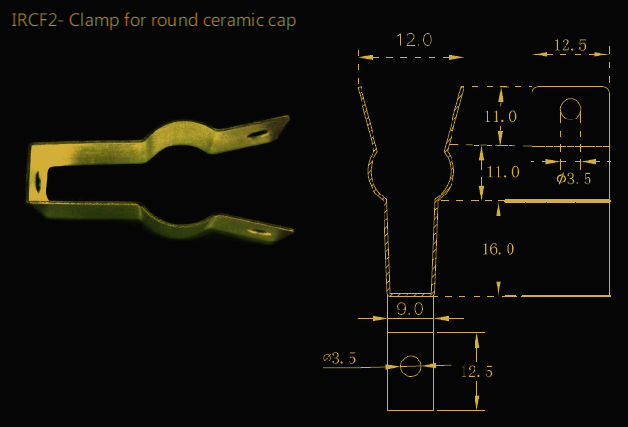

Quartz Lamp Fixtures - IRCF2- Clamp for round ceramic cap

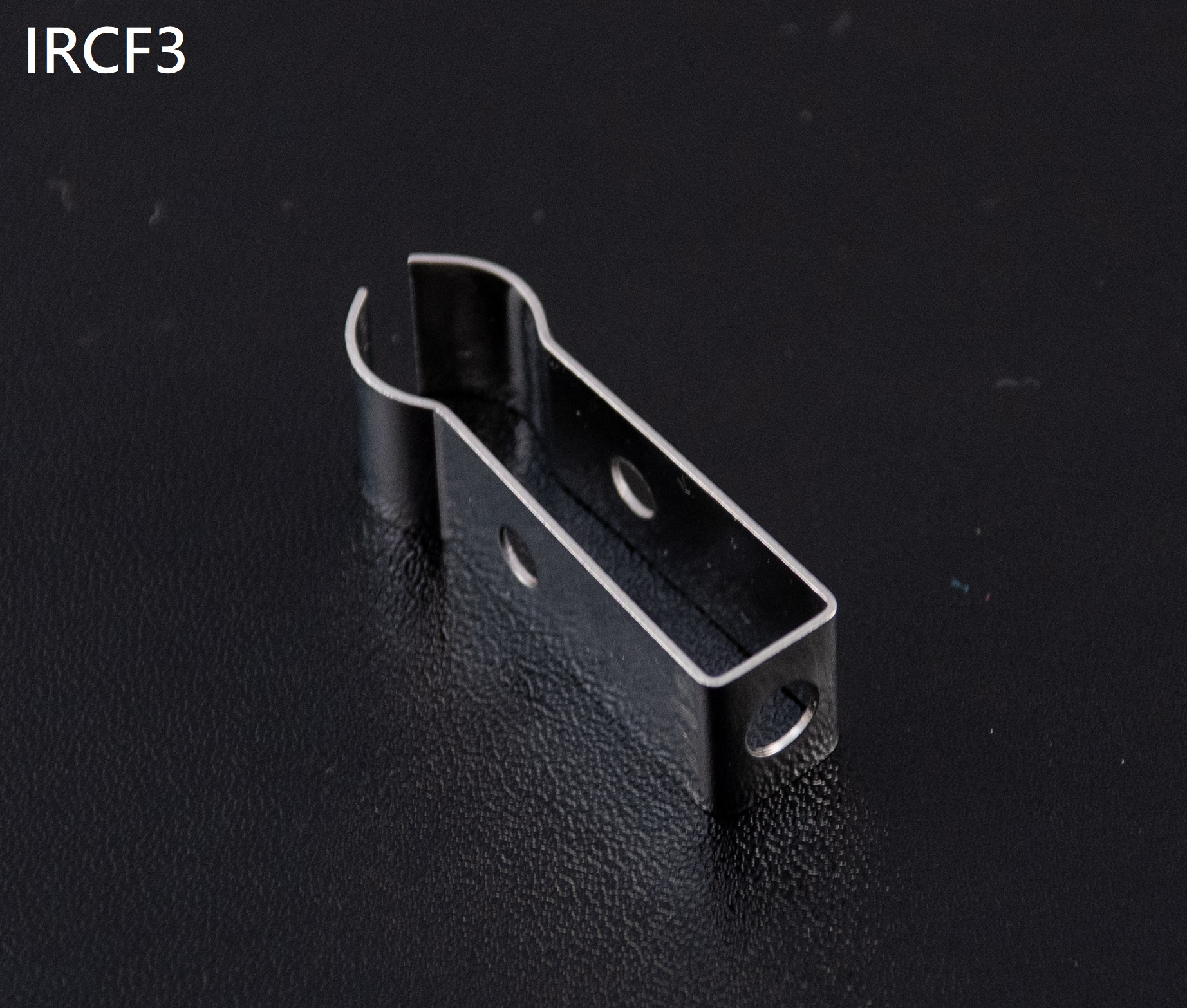

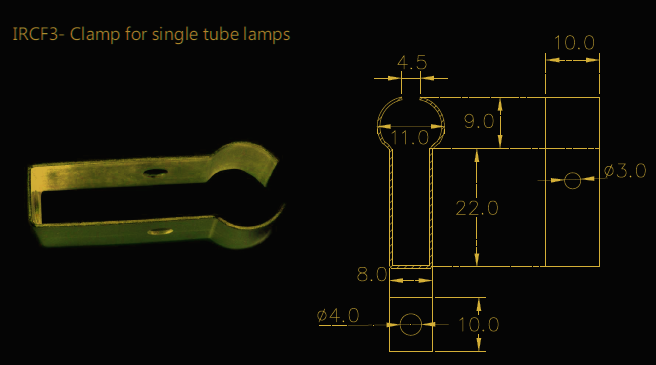

Quartz Lamp Fixtures - IRCF3- Clamp for single tube lamps

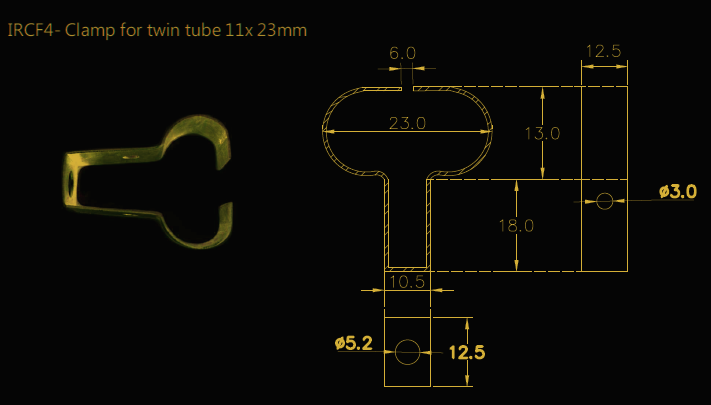

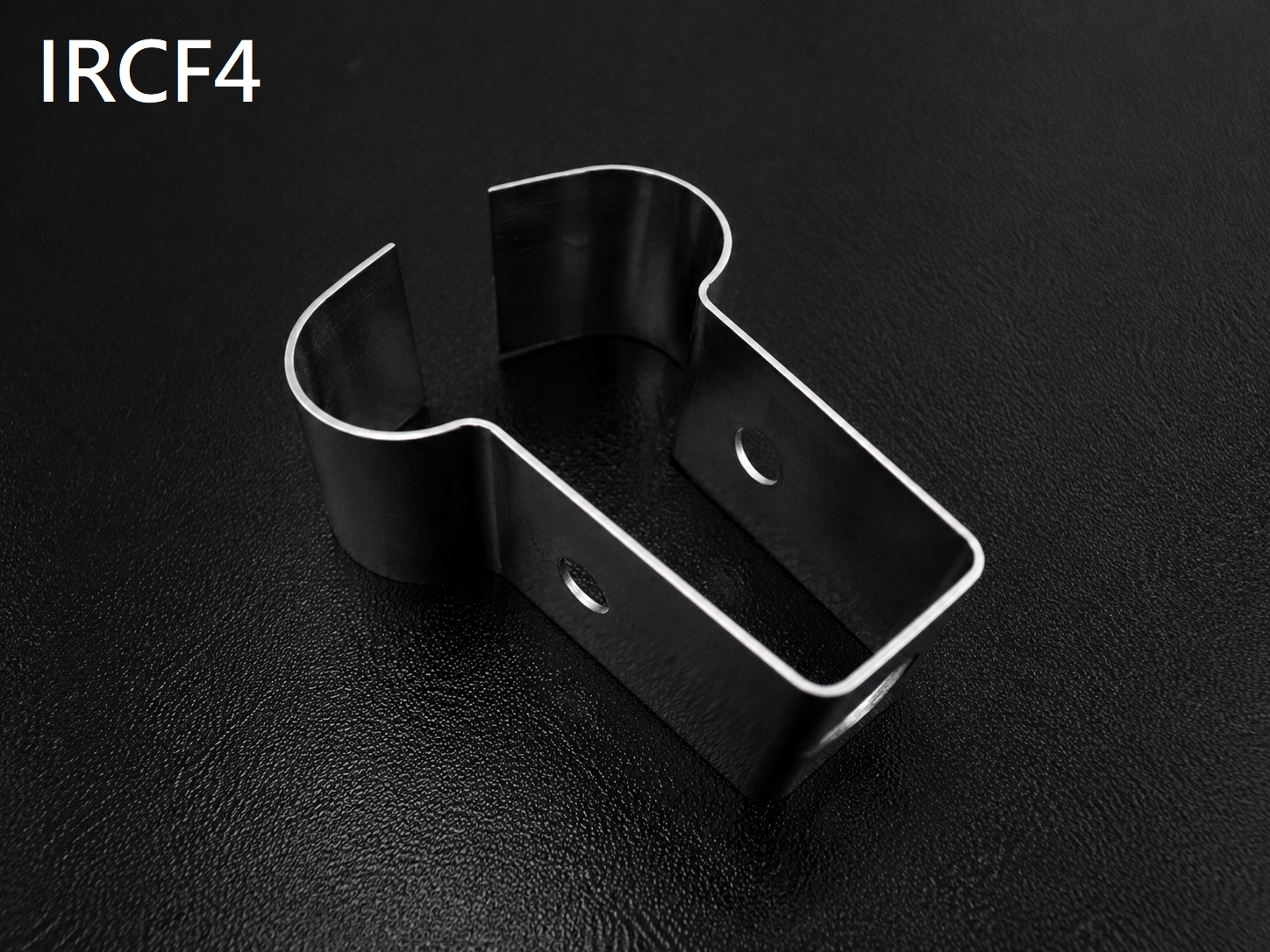

Quartz Lamp Fixtures - IRCF4- Clamp for twin tube 11x 23mm

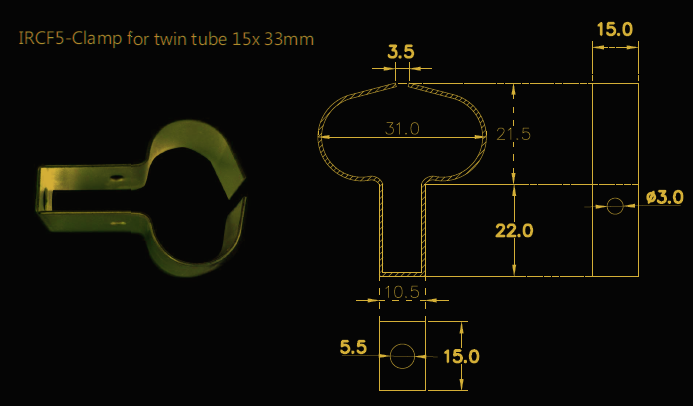

Quartz Lamp Fixtures - IRCF5-Clamp for twin tube 15x 33mm

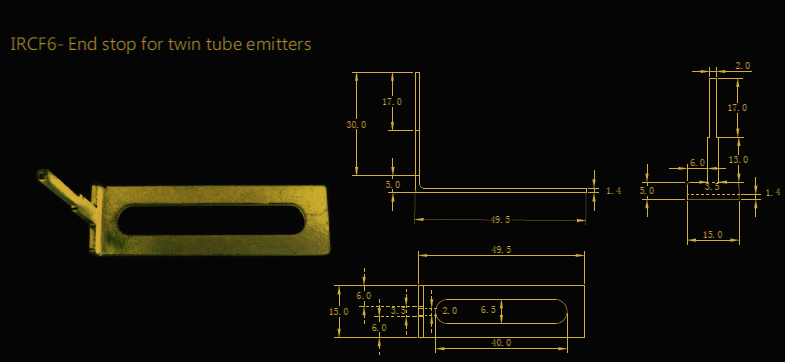

Quartz Lamp Fixtures - IRCF6- End stop for twin tube emitters

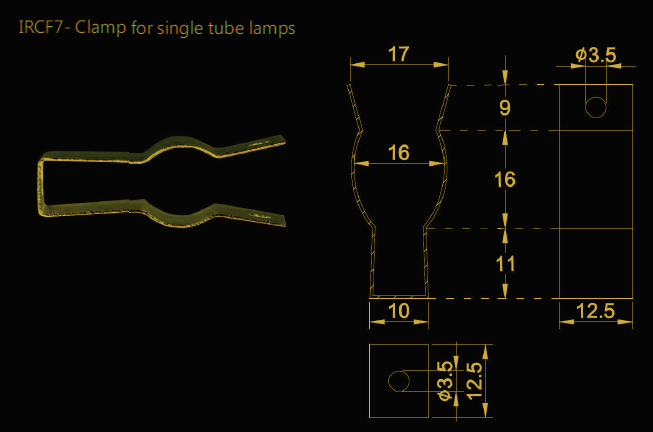

Quartz Lamp Fixtures - IRCF7- Clamp for single tube lamps

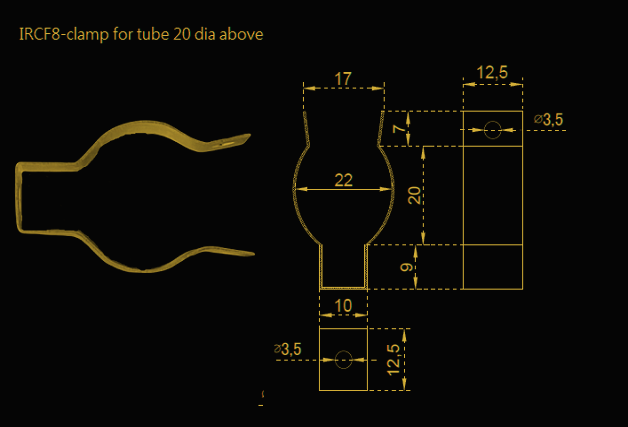

Quartz Lamp Fixtures - IRCF8-clamp for tube 20 dia above

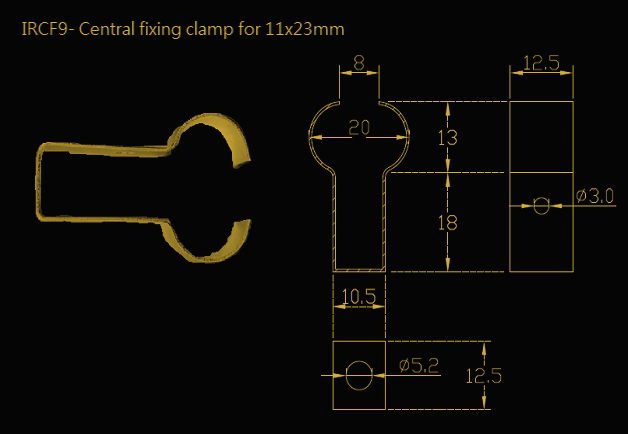

Quartz Lamp Fixtures - IRCF9- Central fixing clamp for 11x23mm

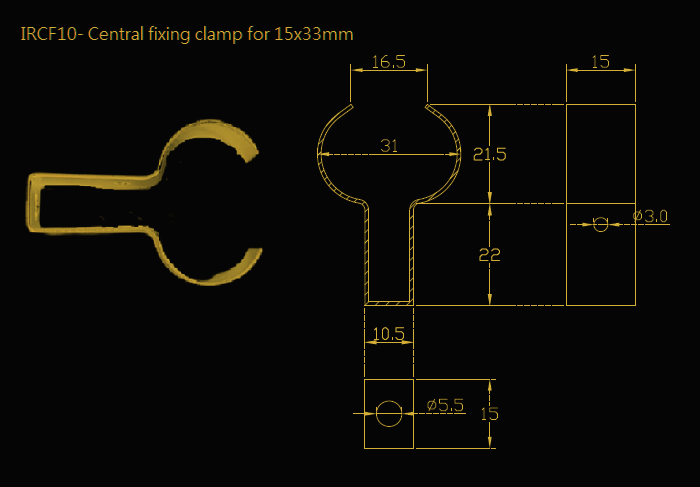

Quartz Lamp Fixtures - IRCFL10- Central fixing clamp for 15x33mm
Quartz Lamp Fixtures - IRCF11- Centel Fixing Clamps 11x23mm

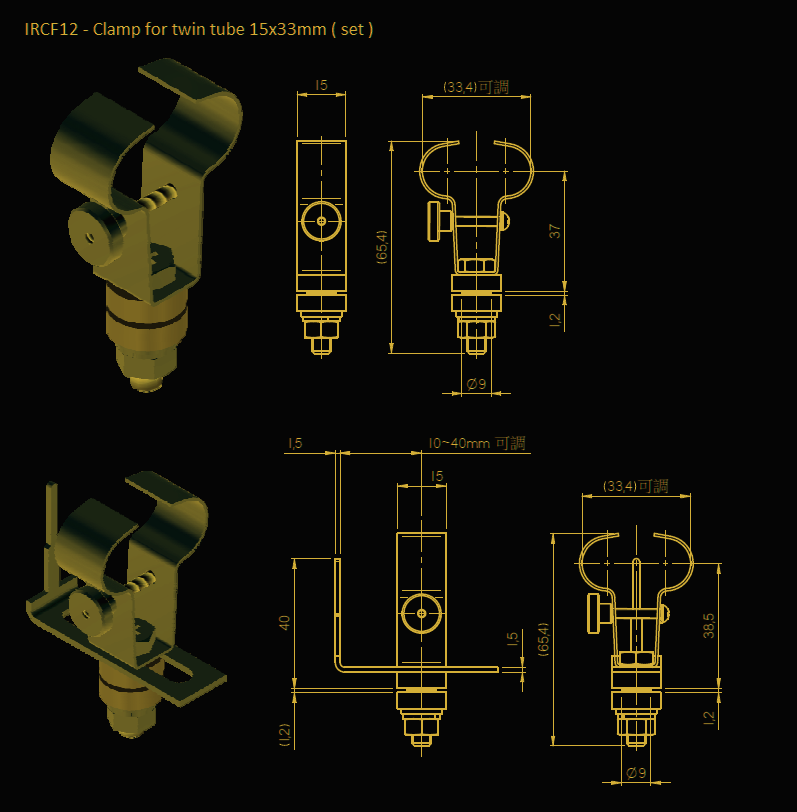

Quartz Lamp Fixtures - IRCF12 - Clamp for twin tube 15x33mm

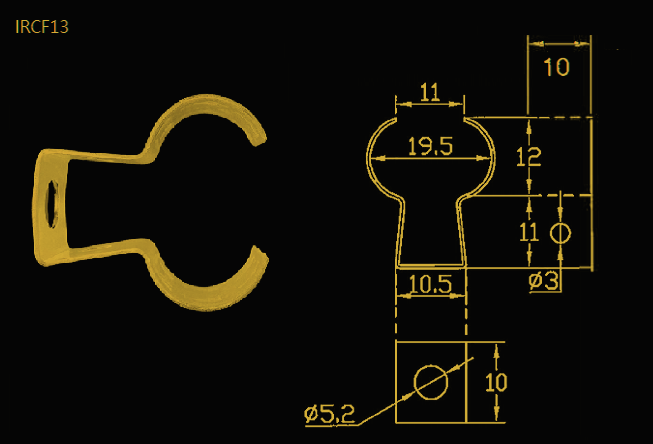

Quartz Lamp Fixtures - IRCF13
