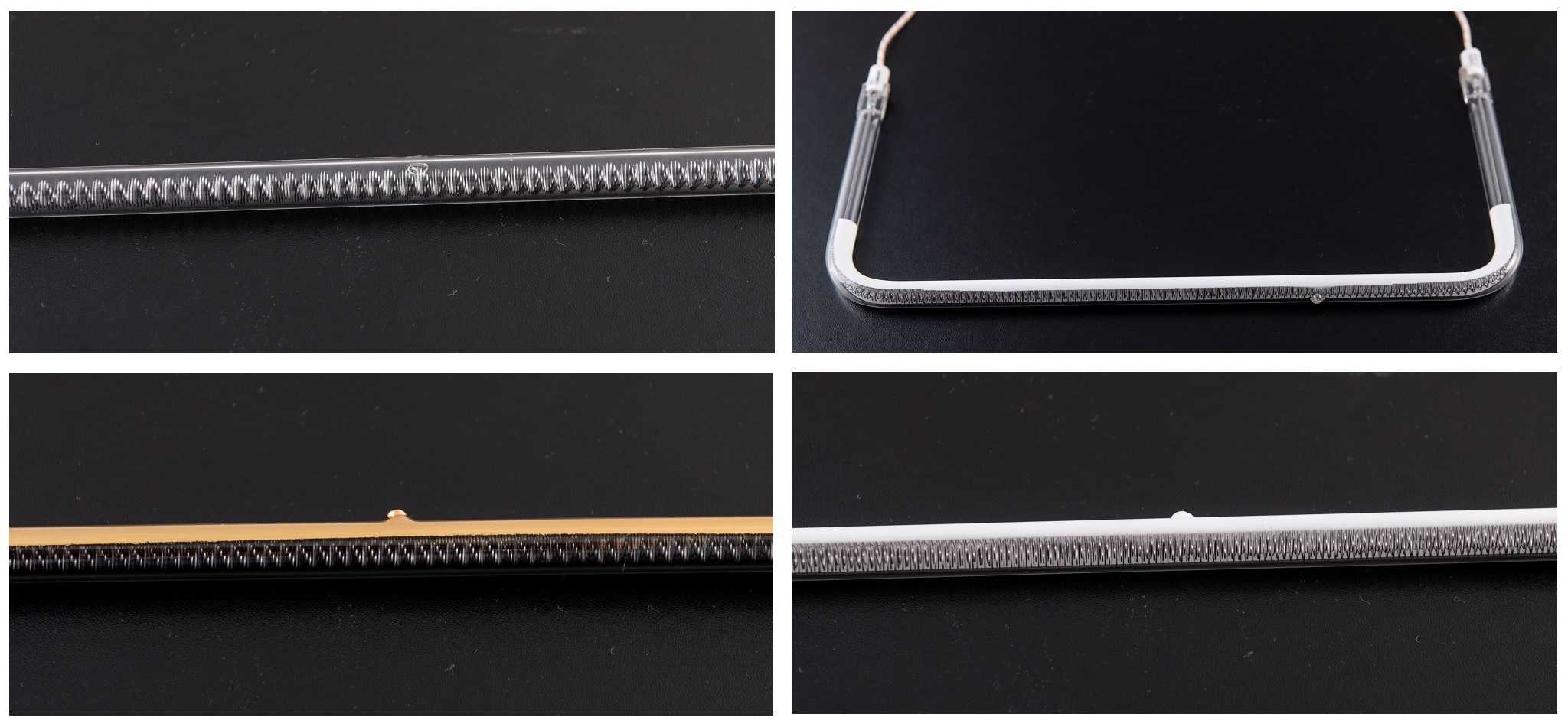

Single Tube

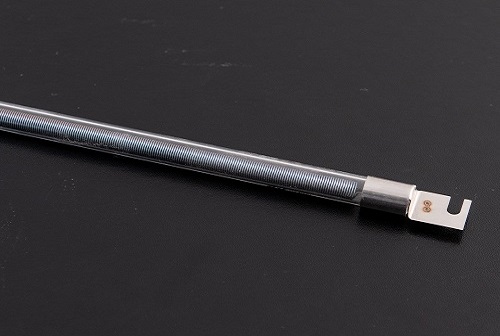

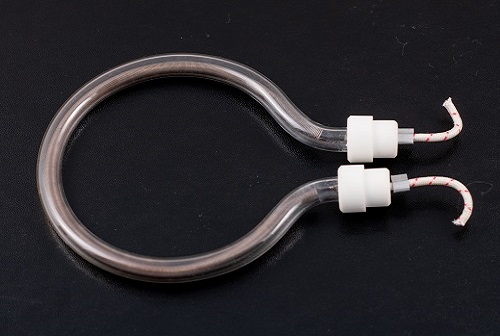

Medium Wave IR Lamp
Medium wave infrared lamps are particularly effective for heating plastics, transparent glass, water, and most solvents, as well as drying moisture, coatings, and inks. Uses Fe-Cr-Al or Ni-Cr resistance wire as the heating element.
Specifications
Wavelength2-4 μm
Filament Temperature800-950°C
Response Time~30-60 seconds
Average Lifespan30,000 hours
Max Length4M
Tube Diameters10, 14, 17, 18, 20 mm
Heating ElementFe-Cr-Al or Ni-Cr resistance wire
Features
- Made from high-purity transparent quartz, available in single and twin tube (figure-8) designs
- Fe-Cr-Al or Ni-Cr resistance wire heating element
- Filament temperature 800-950°C
- Reaches full heating output in approximately 1 minute
- Infrared wavelength range 2-4μm
- Maximum total length up to 4M

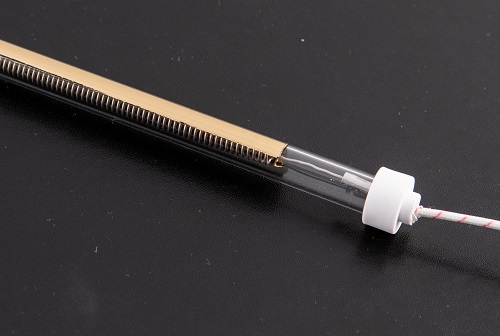

- Gold or ceramic coating available for enhanced reflection and thermal efficiency
- Custom power, voltage, and length manufactured to customer requirements
Applications
PlasticsTransparent glassWaterSolventsCoating/ink drying
Technical Charts

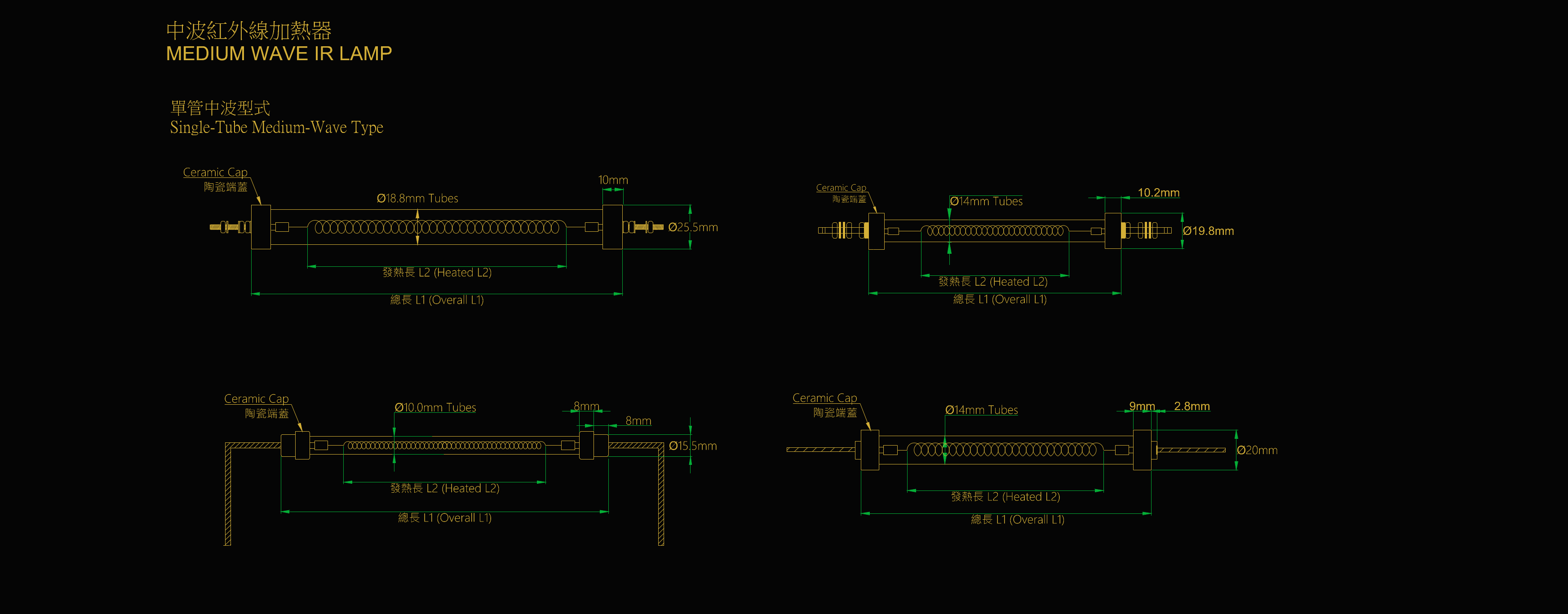

Single-Tube Medium-Wave Type — Tube Diameter Variants
Available Options
Gold/ceramic reflective coatingCustom voltage/power/length
