Single Tube

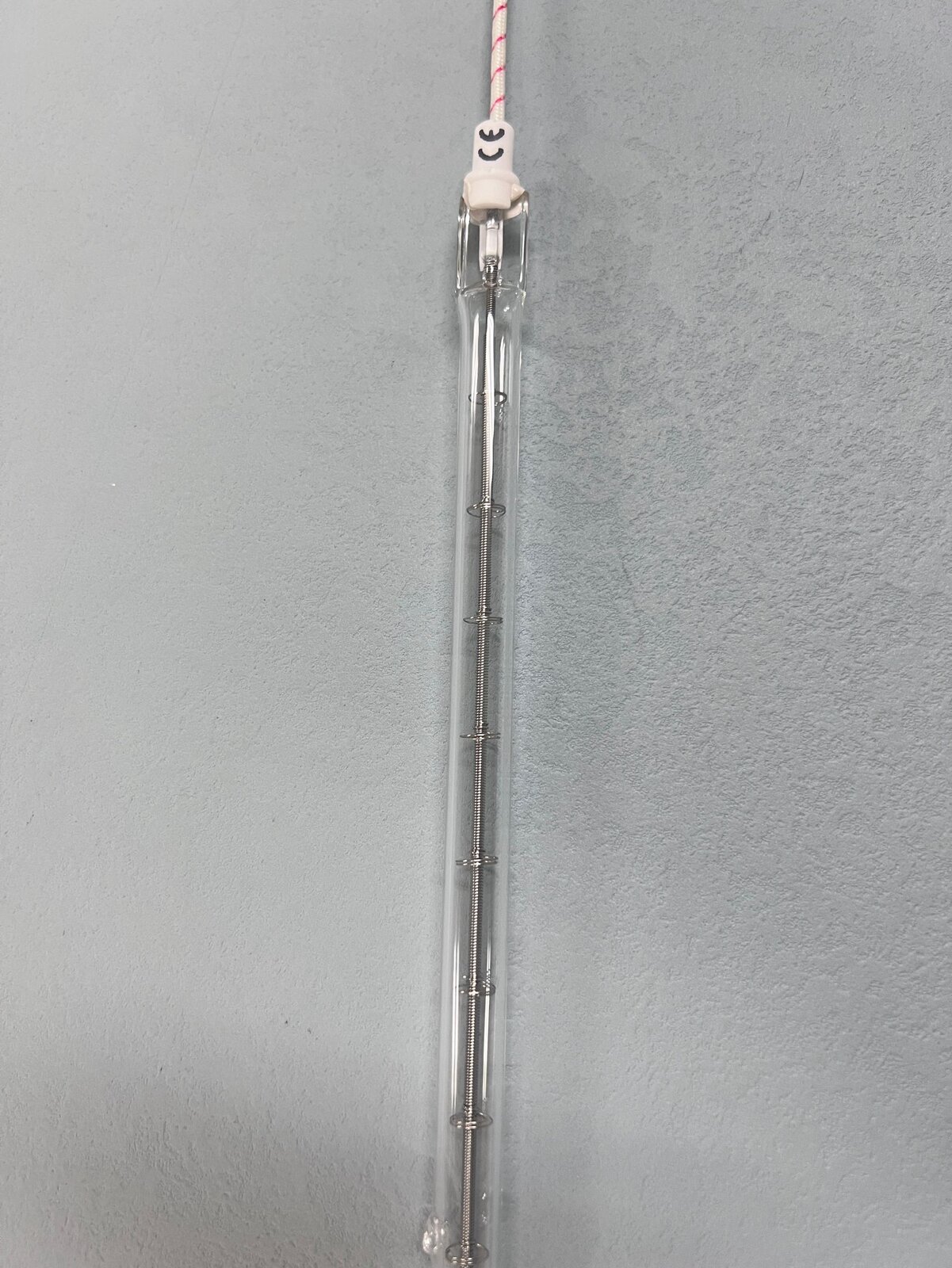

Short Wave IR Lamp
Short wave infrared lamps offer the best heating efficiency and are especially suitable for processes that require rapid temperature rise and fall. Made from high-purity transparent quartz with tungsten filament, vacuum-sealed and filled with protective gas.
Specifications
Wavelength1-2 μm (SW); 0.8-2 μm (NIR)
Filament Temperature1800-2400°C
Color Temperature2400-2500°K
Response Time1-2 seconds
Average Lifespan5,000 hours
Max Length3M
Tube Diameters6, 8, 10, 11, 13, 15 mm
Heating ElementTungsten filament
Max Power Density100 W/cm
Features
- Made from high-purity transparent quartz, available in single and twin tube (figure-8) designs
- Short wave (SW) wavelength range 1-2μm; Near infrared (NIR) range 0.8-2μm available on request
- Tungsten filament, vacuum-sealed with protective gas filling
- Instant heating and rapid cooling, reaches maximum temperature in approximately 1-2 seconds
- Filament temperature 1800-2400°C
- Maximum length up to 3M
- Gold or ceramic coating on rear surface increases reflection and thermal efficiency
- Custom voltage, power, and length manufactured to customer requirements
- Can be made for vertical or horizontal operation
Technical Charts

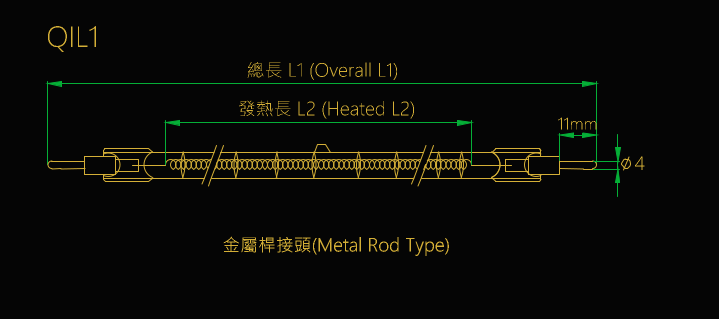

Short Wave IR Lamp - QIL1

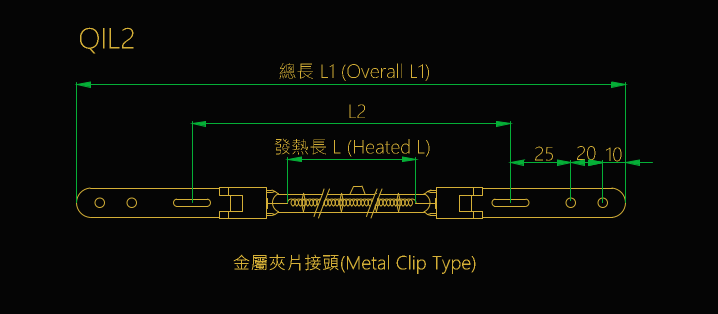

Short Wave IR Lamp - QIL2

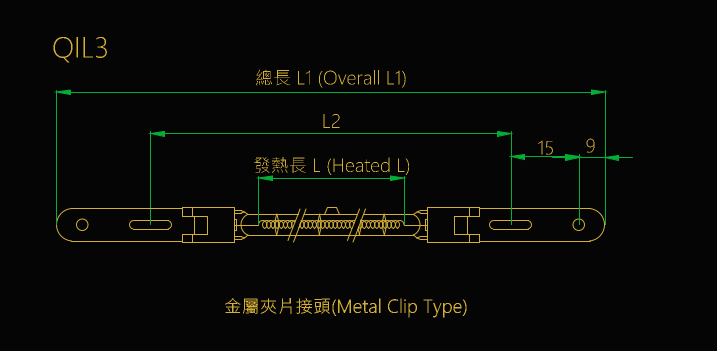

Short Wave IR Lamp - QIL3

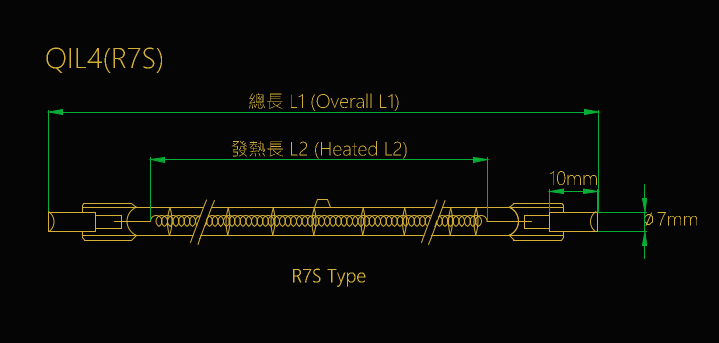

Short Wave IR Lamp - QIL4

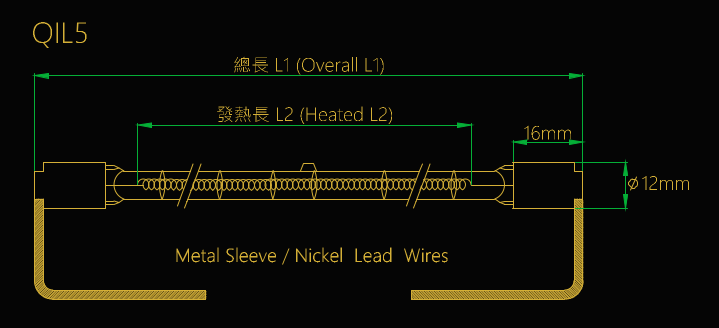

Short Wave IR Lamp - QIL5

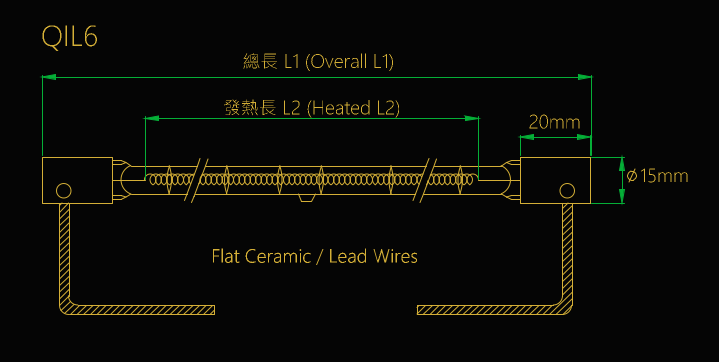

Short Wave IR Lamp - QIL6

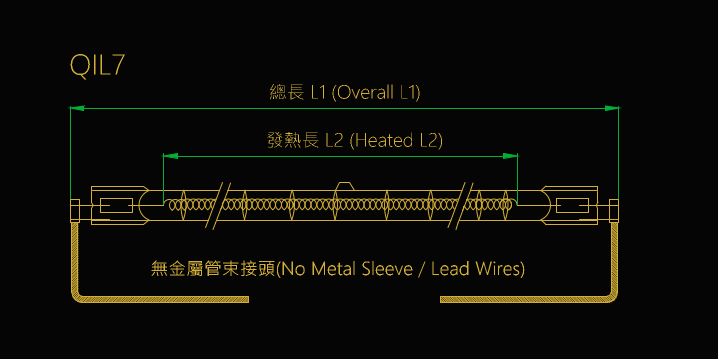

Short Wave IR Lamp - QIL7

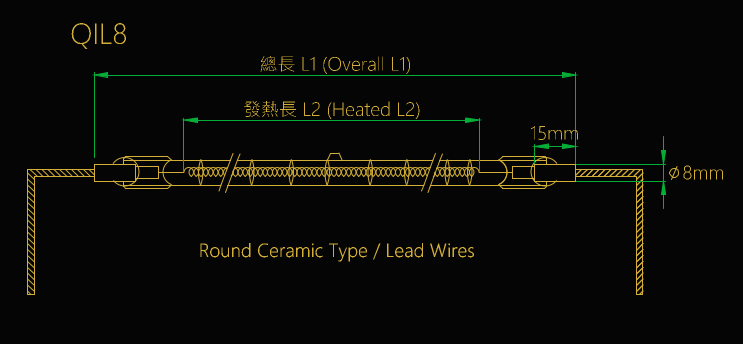

Short Wave IR Lamp - QIL8

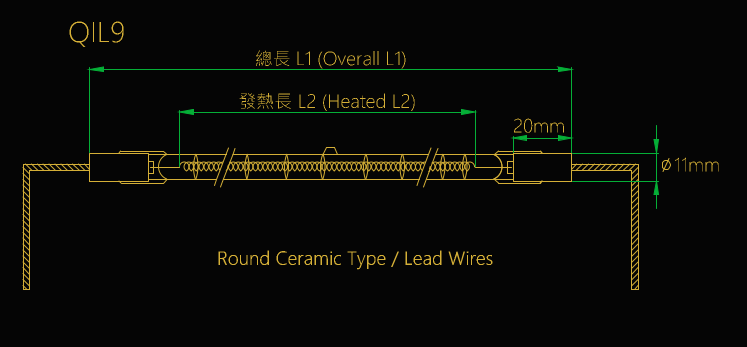

Short Wave IR Lamp - QIL9

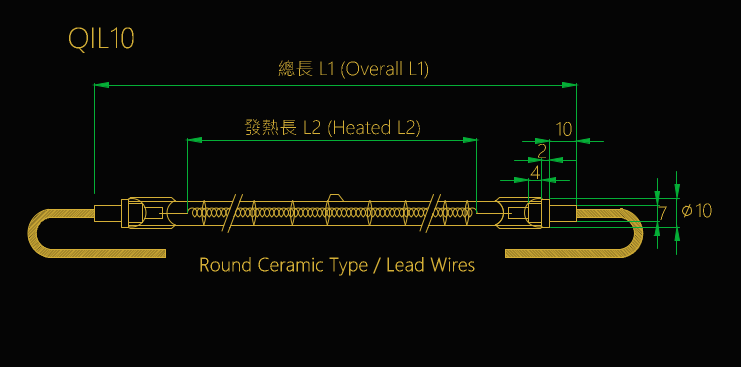

Short Wave IR Lamp - QIL10

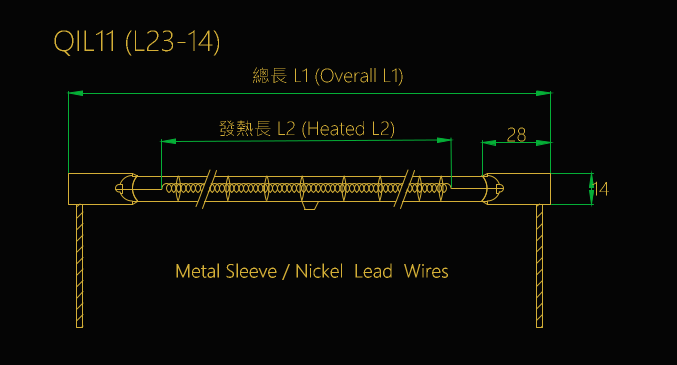

Short Wave IR Lamp - QIL11/23-14

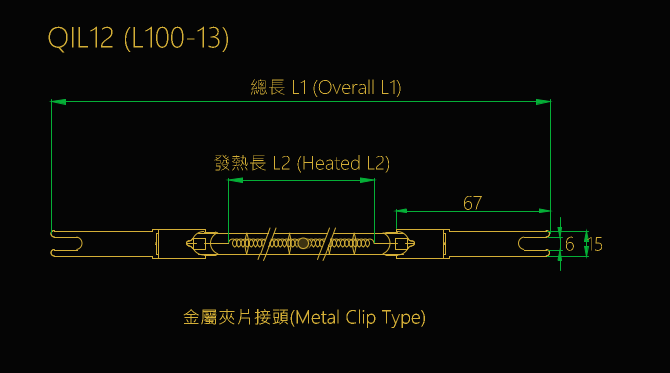

Short Wave IR Lamp - QIL12 / 100-13

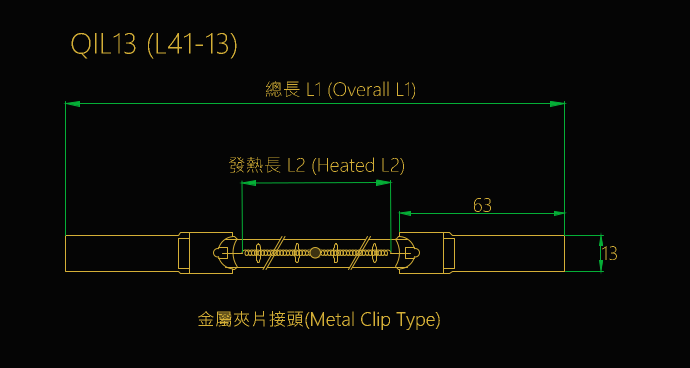

Short Wave IR Lamp - QIL13 / L41-13

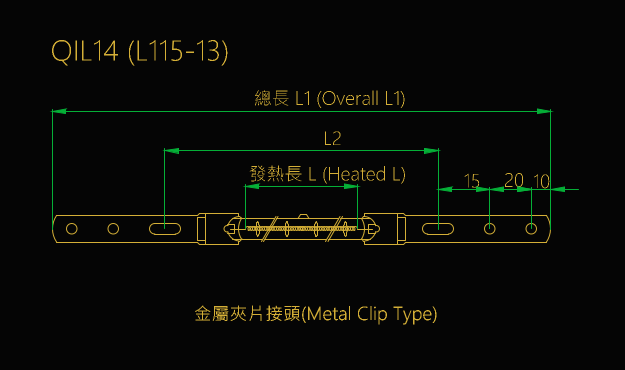

Short Wave IR Lamp - QIL14 / 115-13
Available Options
Gold/ceramic reflective coatingVertical/horizontal operationCustom voltage/power/length
