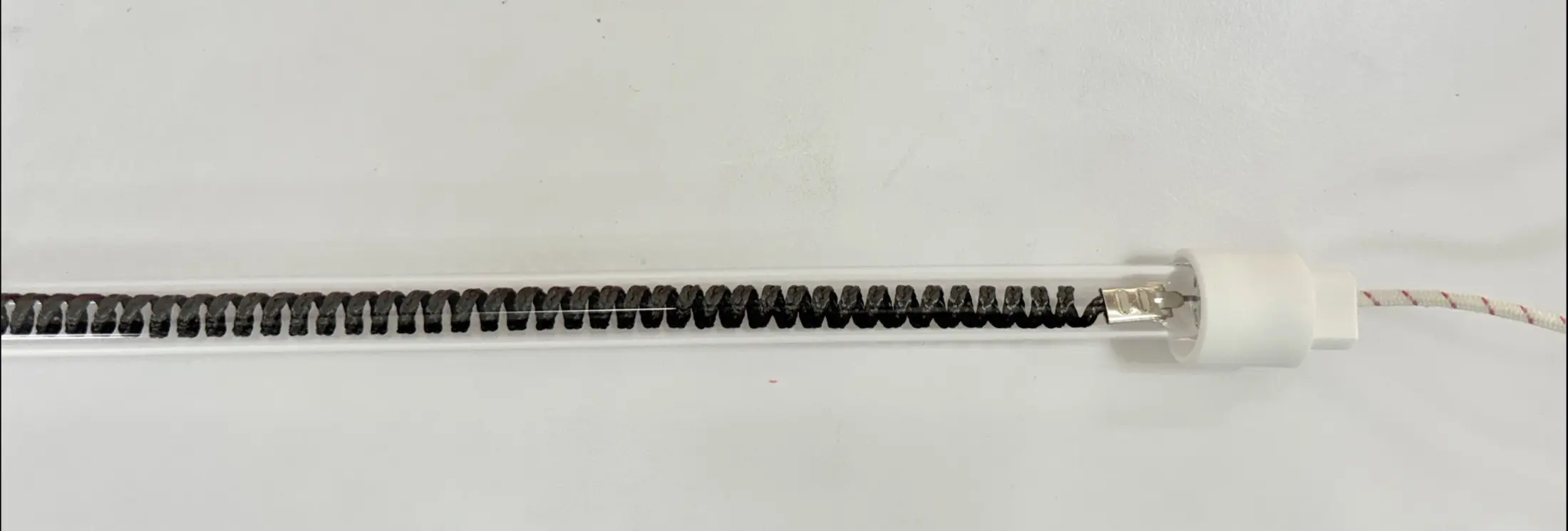

Single Tube
Carbon Infrared Emitter
Carbon infrared emitters produce medium wave infrared radiation and are particularly effective for heating plastics, transparent glass, water, adhesives, and most solvents, including drying moisture, coatings, and inks. Uses carbon fiber as the heating element with over 95% electrical-to-thermal conversion efficiency.
Specifications
Wavelength2-4 μm
Filament TemperatureMax 1200°C
Response Time10-30 seconds
Average Lifespan5,000 hours
Max Length3M
Tube Diameters10, 11, 12, 13, 15, 18, 20 mm
Heating ElementCarbon fiber
Conversion Efficiency>95%
Features

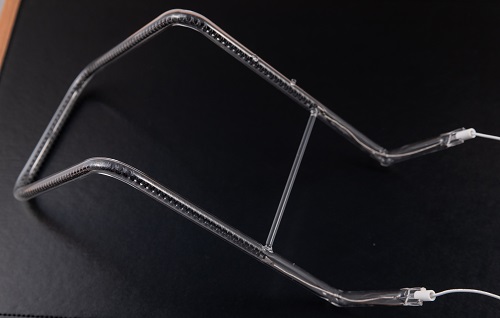

- Made from high-purity transparent quartz, available in single and twin tube (figure-8) designs
- Carbon fiber heating element
- Filament temperature up to 1200°C maximum
- Reaches full heating output in approximately 10-30 seconds
- Infrared wavelength range 2-4μm
- Maximum total length up to 3M

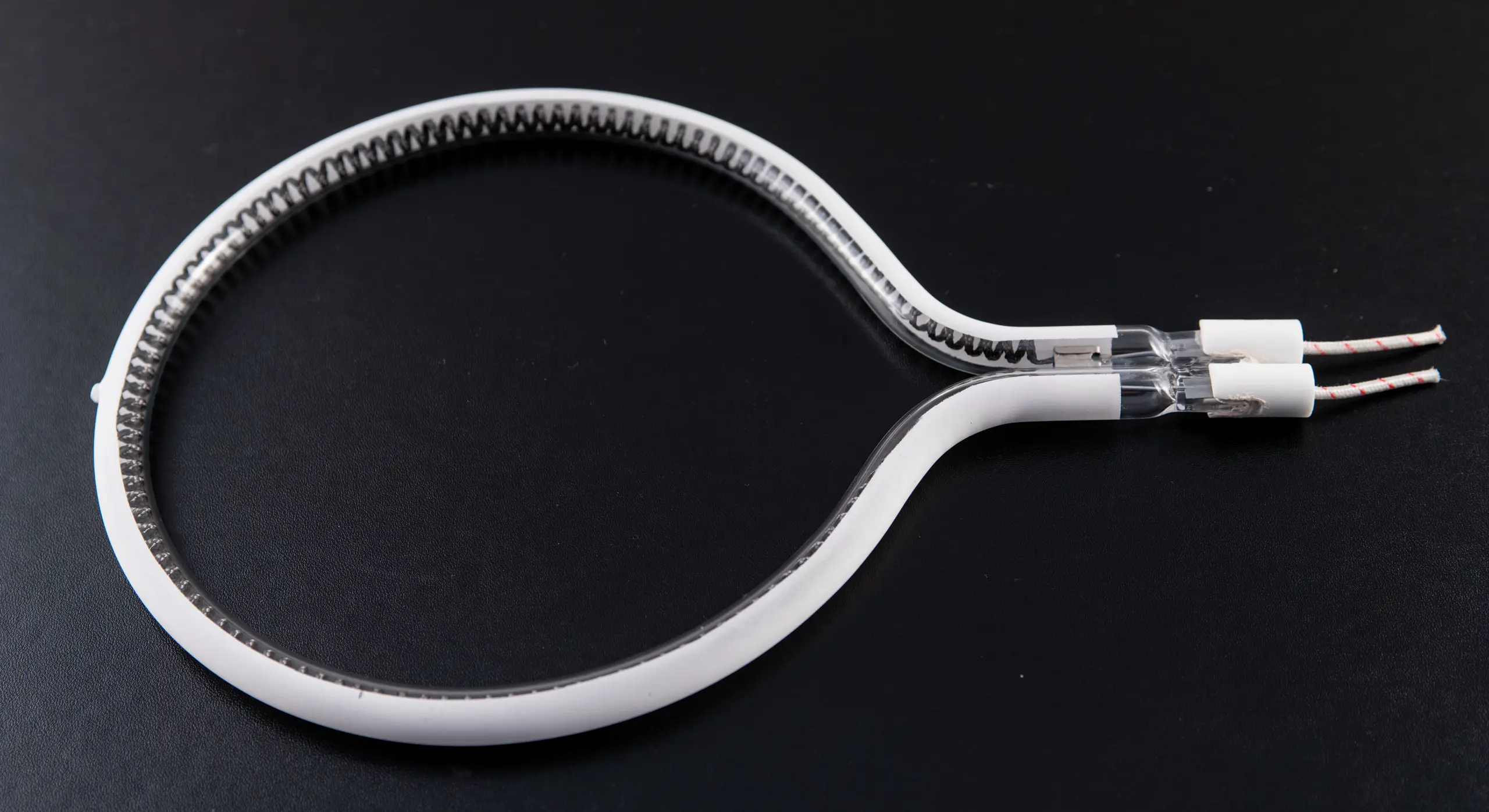

- Gold or ceramic coating available for enhanced reflection and thermal efficiency
- Custom power, voltage, and length manufactured to customer requirements
Applications
PlasticsGlassWaterAdhesivesSolventsCoating/ink drying
Technical Charts
Carbon Infrared Emitter - Industrial Heater Temperature Profile
Available Options
Gold/ceramic reflective coatingCustom voltage/power/length
