Enhanced Reflection & Thermal Efficiency
Ceramic Reflector / Gold Reflector
All single and twin tube infrared quartz heaters — including short wave, medium wave, and fast medium wave types — can be gold or ceramic coated on the rear surface. This significantly reduces rear-side temperature, lowers equipment/furnace heating, and eliminates the need for separate reflectors.
Specifications
Coating Efficiency>25% improvement
Coating Max TempBest below 600°C (usable below 800°C)
Ceramic Coating Efficiency~20% improvement
Ceramic Coating Max TempUp to 1000°C
Standard Angle180° (half-circle)
Optional Angle270° (3/4 circle) or custom
Features
- Available for all single and twin tube IR heaters (short wave, medium wave, fast medium wave)
- Significantly reduces rear-side non-heating direction temperature
- Reduces equipment or furnace body high temperature exposure
- Eliminates the need for separate reflectors
- Concentrates thermal energy in the heating direction, improving efficiency and saving energy
- Coating: best below 600°C surface temperature, reflection efficiency improved by over 25%
- Ceramic coating: withstands temperatures up to 1000°C, reflection efficiency improved by approximately 20%
- Standard 180° (half-circle) coating; 270° (3/4 circle) or other custom angles available

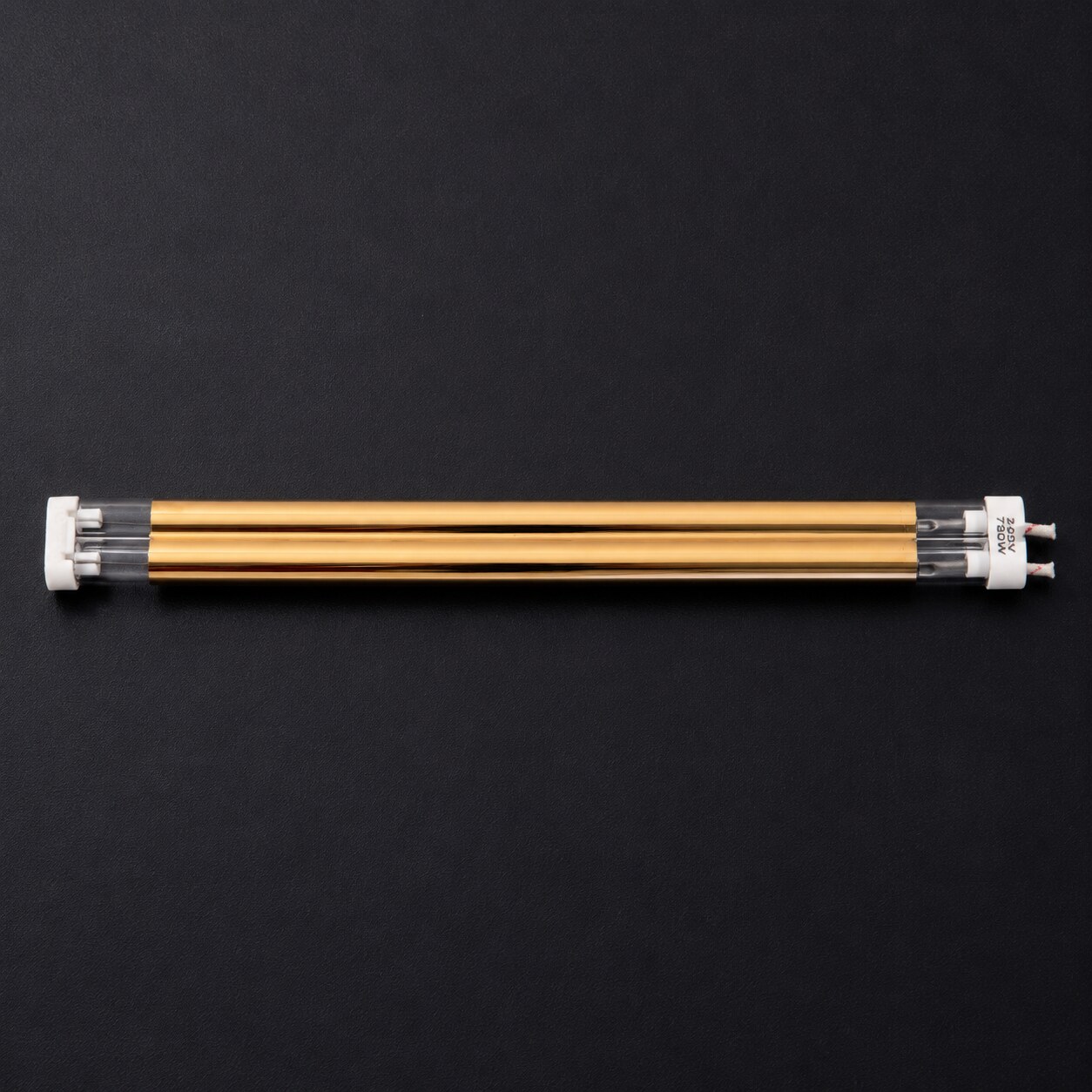

Gold Reflector

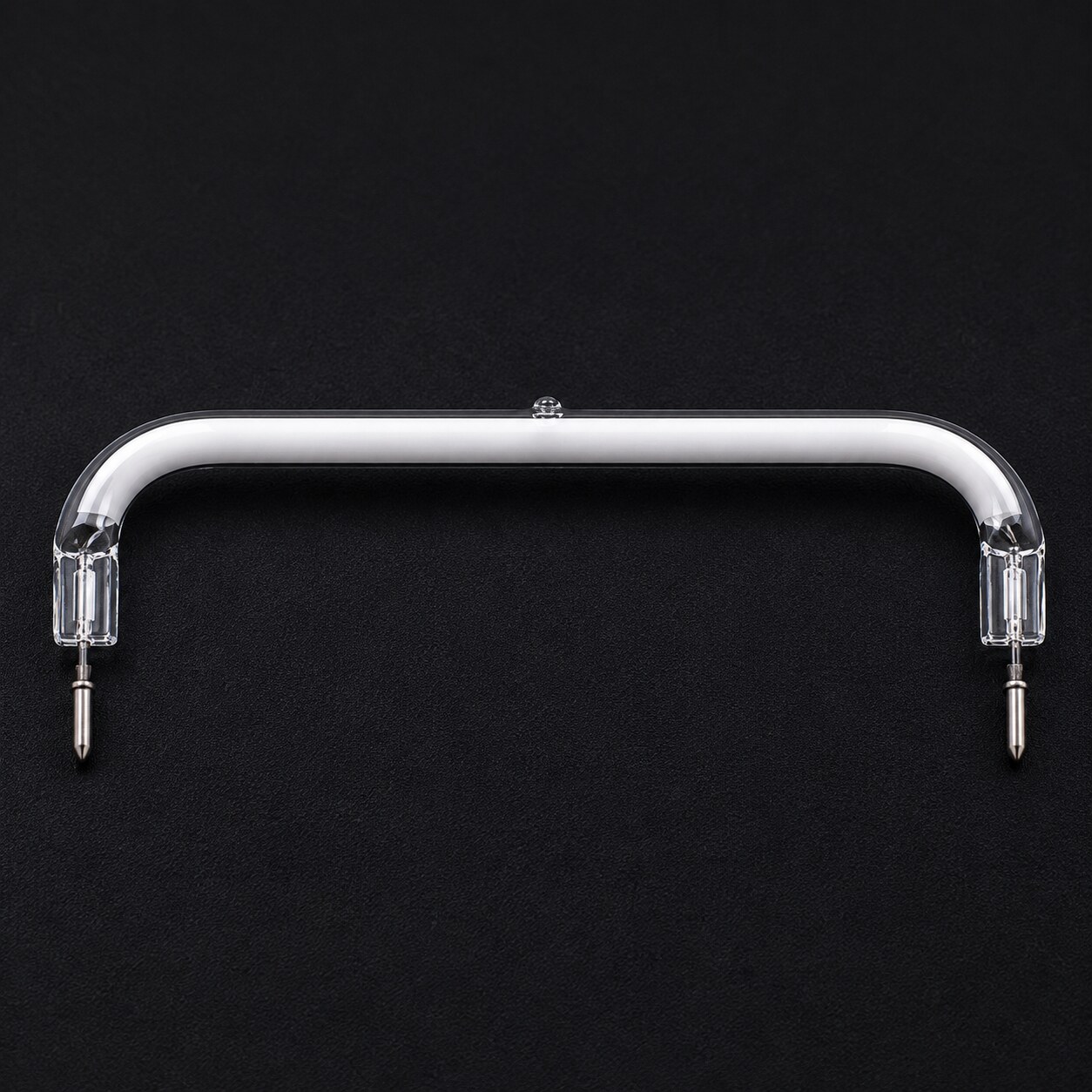

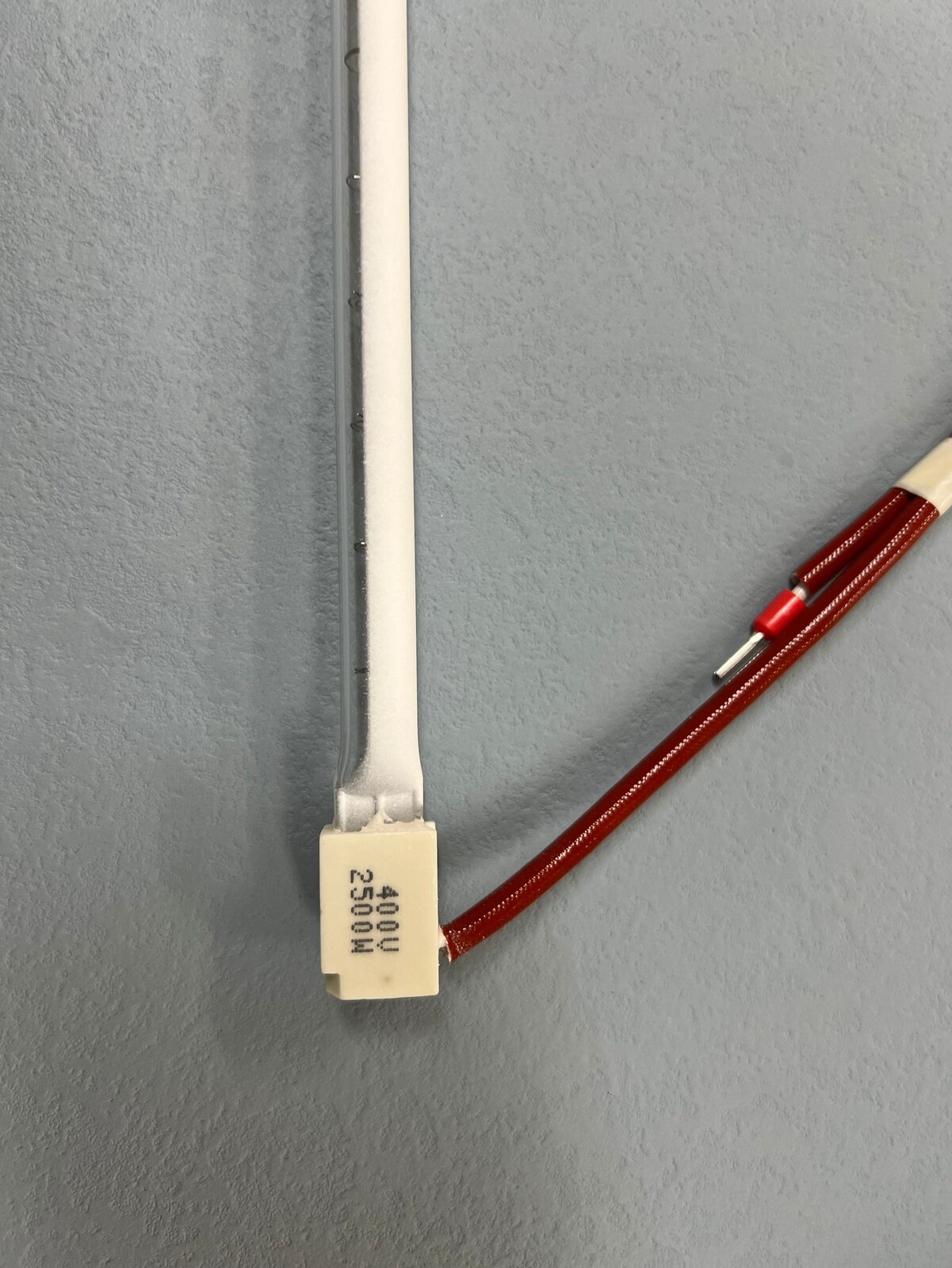

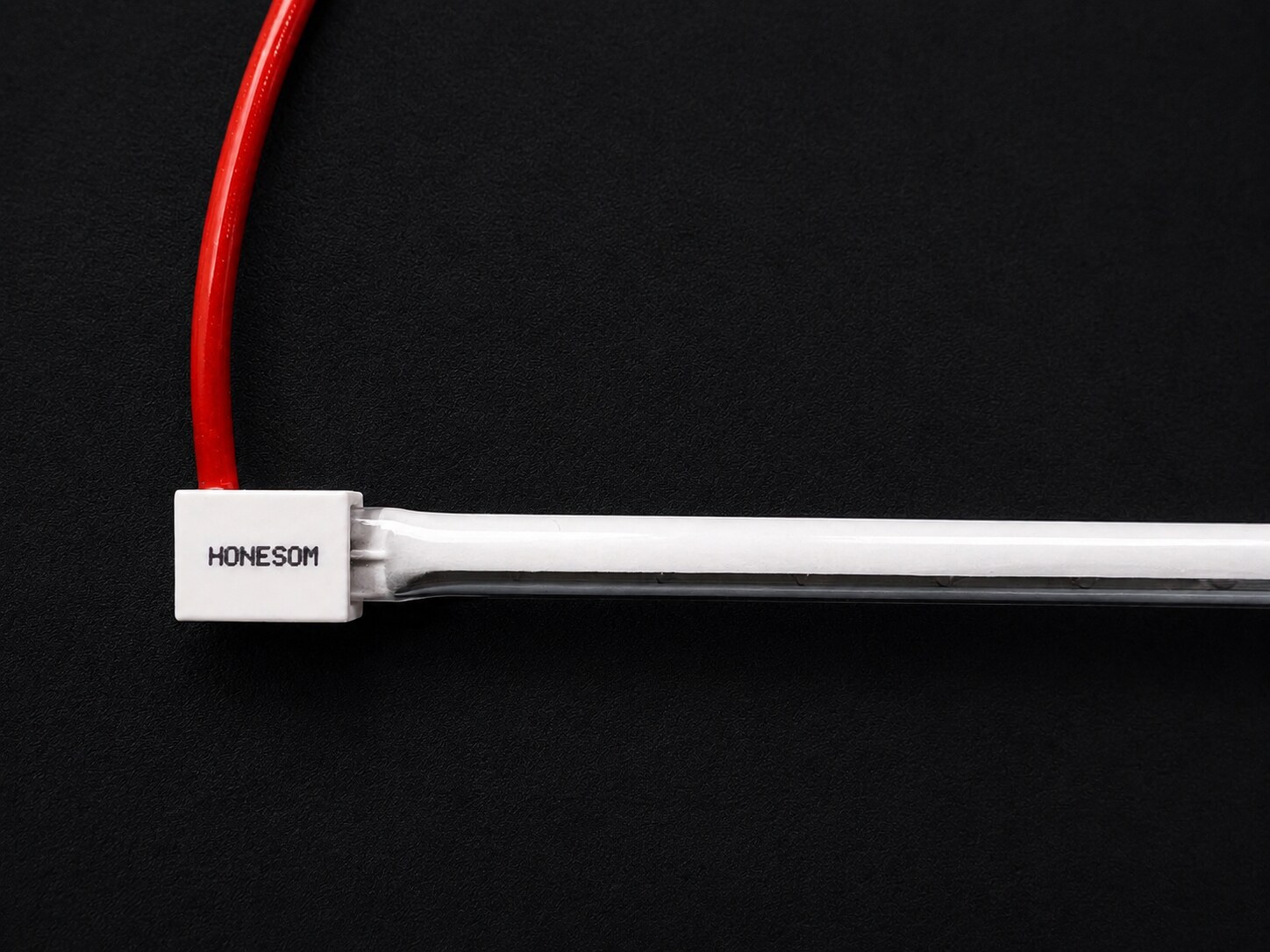

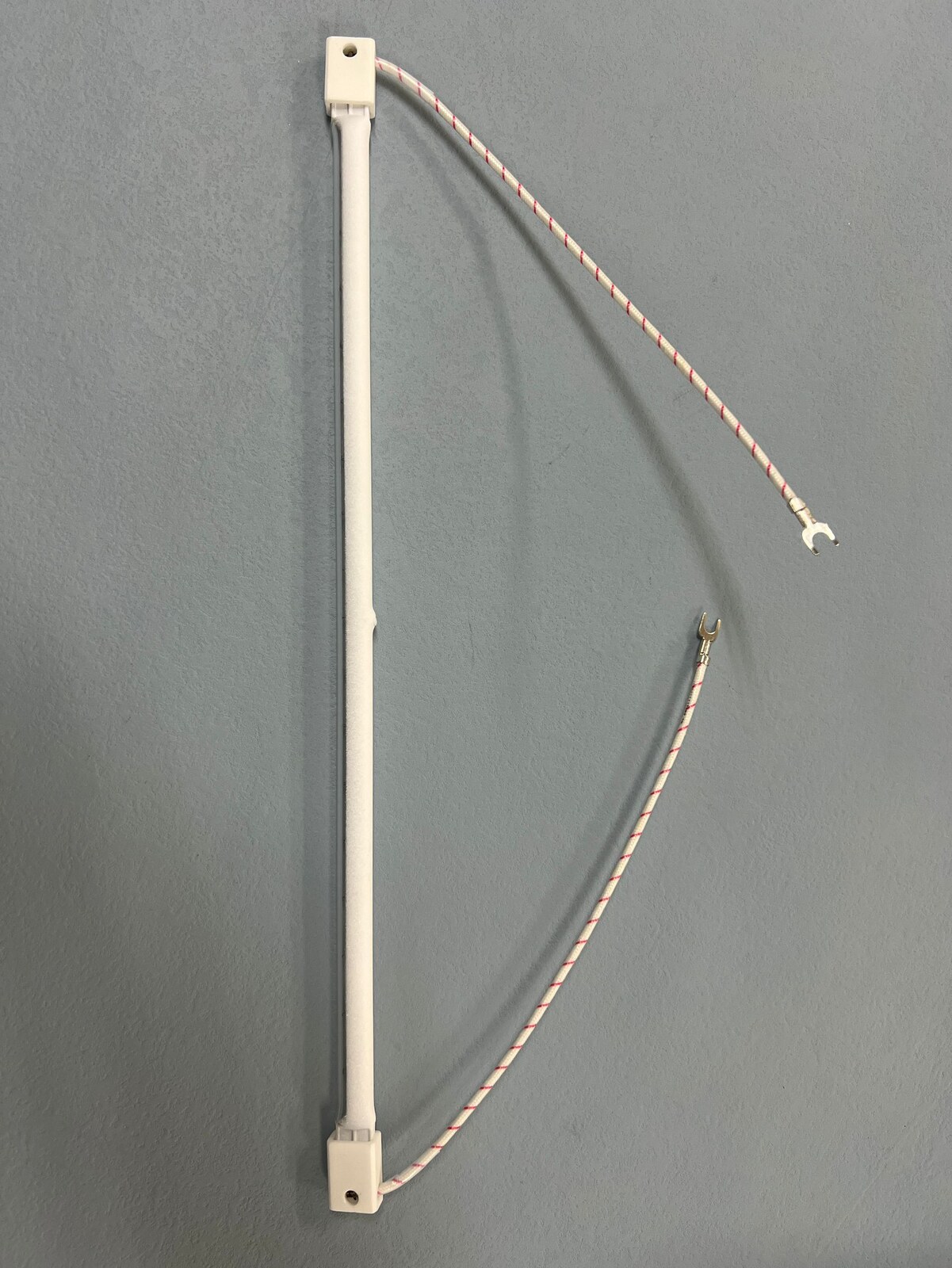

Ceramic Reflector

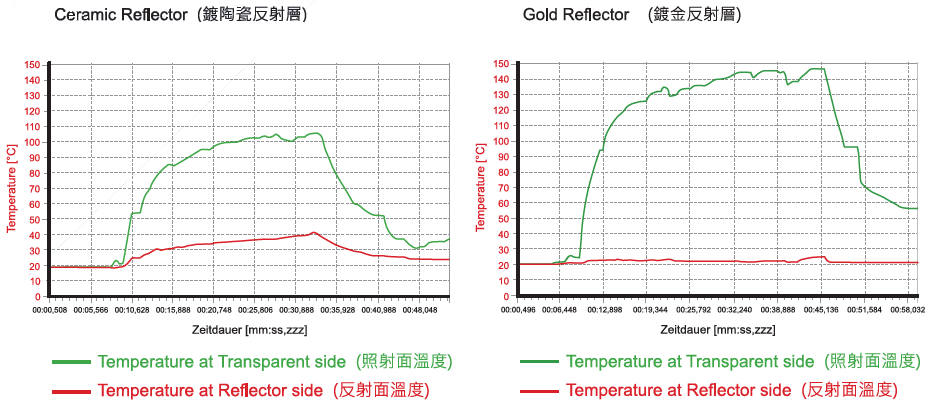

Technical Charts
Gold/Ceramic Reflective Layer — reflection illustration
