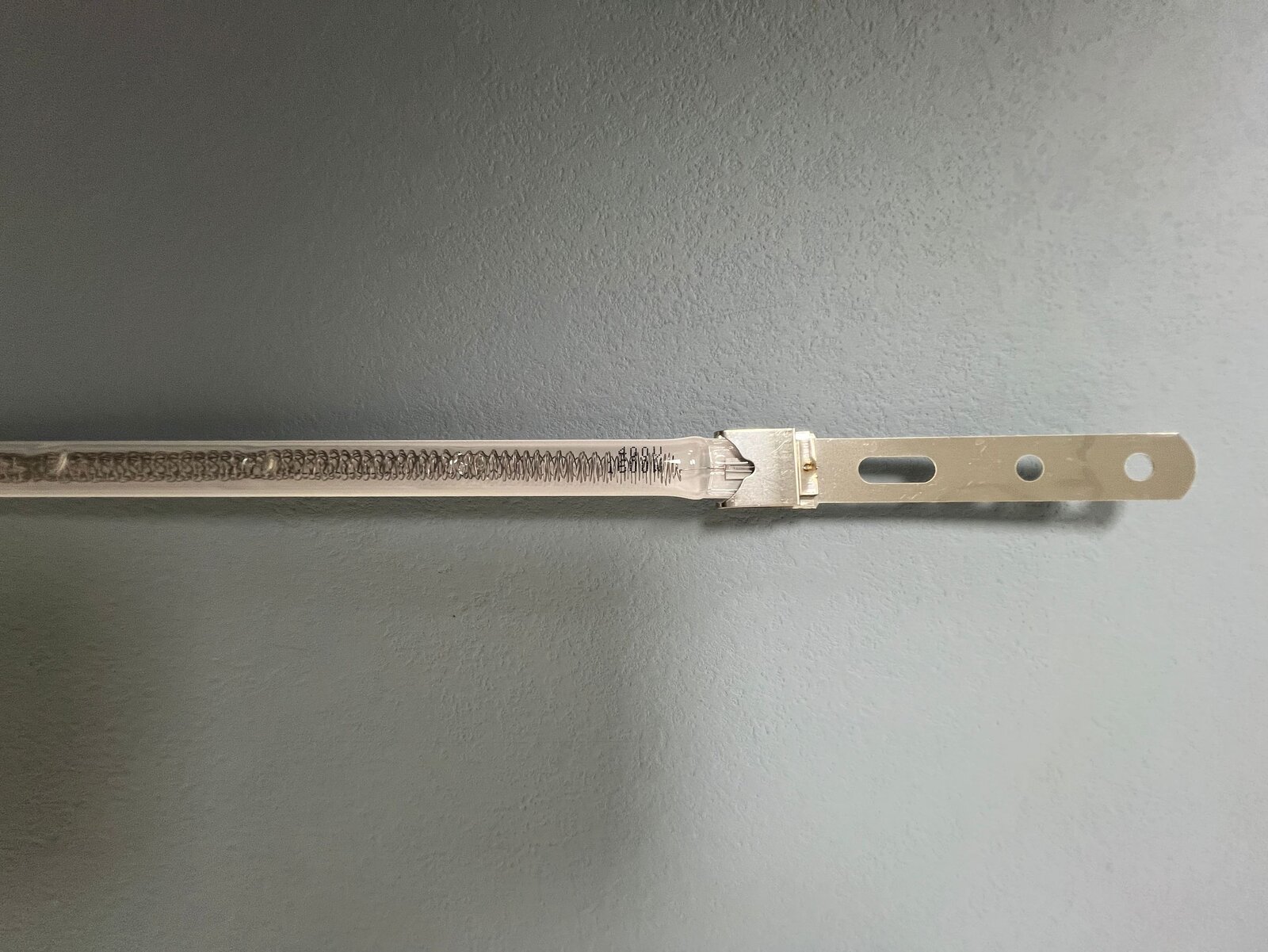

Single Tube — Spiral / Star (Triangle) Wire
Fast Medium Wave IR Lamp
Fast medium wave IR lamps produce infrared radiation between short wave and medium wave spectra, making them ideal for rapid drying processes. They can achieve fast temperature rise and fall, suitable for short-duration heating applications. Available with standard spiral wire or special star/triangle wire filaments.
Specifications
WavelengthBetween short wave and medium wave
Filament Temperature1400-1800°C
Response Time1-2 seconds
Max Length3M
Tube Diameters6, 8, 10, 11, 13, 15 mm
Heating ElementTungsten filament (standard) / Star wire / Triangle wire (special)
Features
- Made from high-purity transparent quartz, available in single and twin tube (figure-8) designs
- Infrared wavelength between short wave and medium wave range
- Tungsten filament, vacuum-sealed with protective gas filling
- Instant heating and rapid cooling, reaches maximum temperature in approximately 1-2 seconds
- Filament temperature 1400-1800°C
- Maximum length up to 3M
- Gold or ceramic coating on rear surface increases reflection and thermal efficiency
- Custom voltage, power, and length manufactured to customer requirements
- Available for vertical or horizontal operation

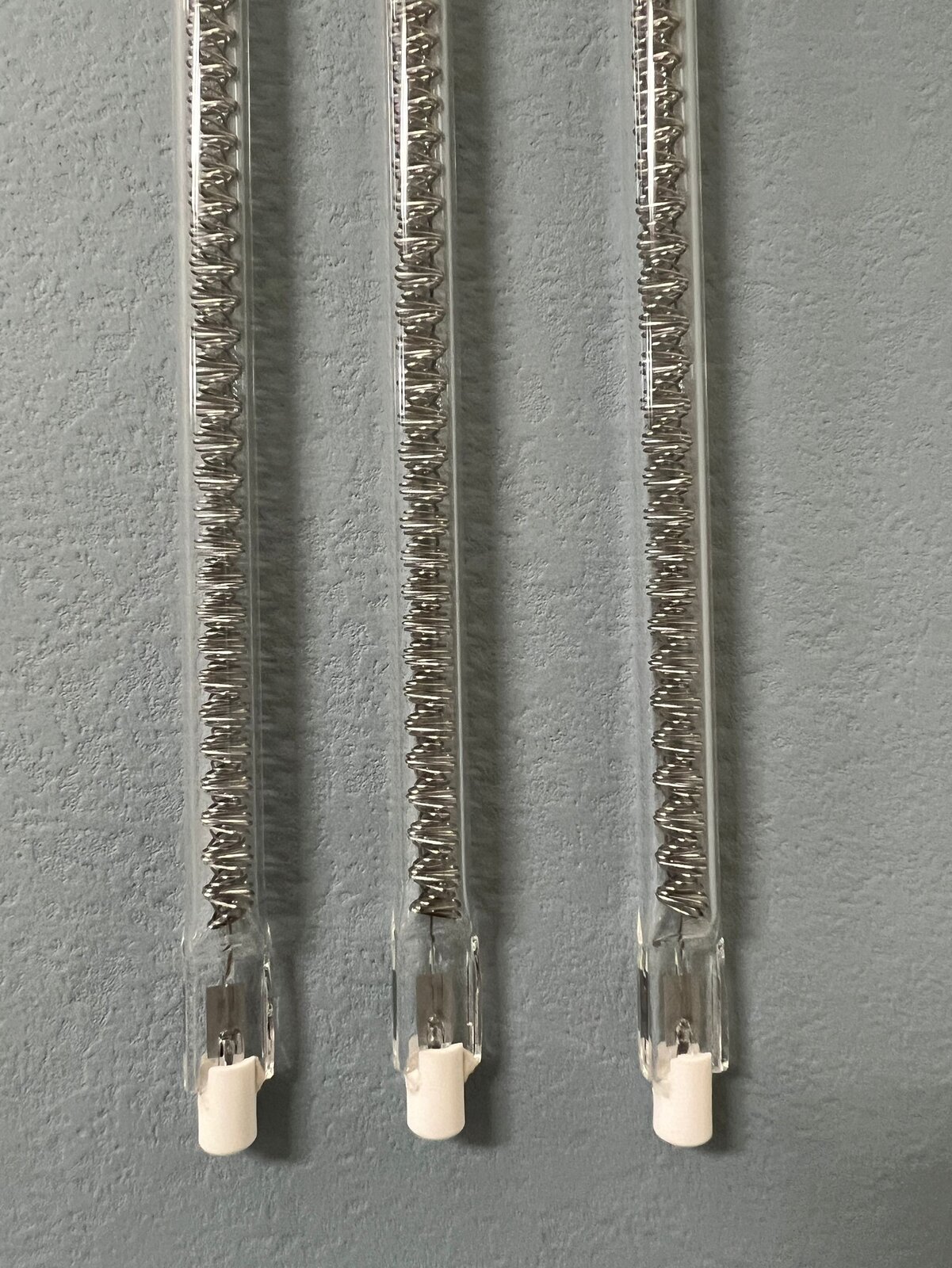

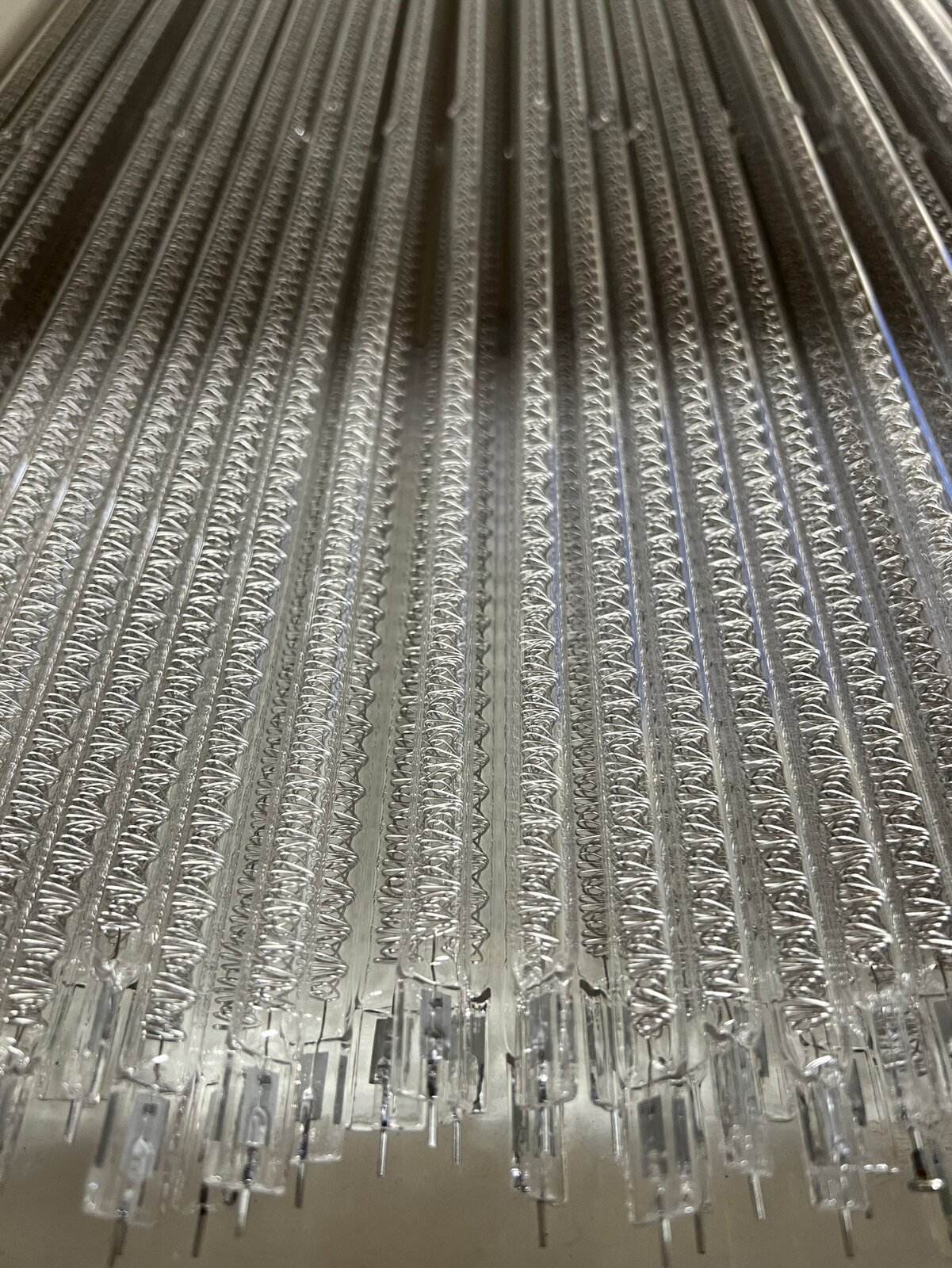

Star / Triangle Wire
- Special star (triangle) wire filament design lowers color temperature for longer wavelength radiation
- Can replace carbon quartz heating tubes
- Available for single and twin tube, maximum length up to 4M
- Custom voltage, power, and length manufactured to customer requirements
Technical Charts
Fast Medium Wave IR Lamp - QIL1
Fast Medium Wave IR Lamp - QIL2
Fast Medium Wave IR Lamp - QIL3
Fast Medium Wave IR Lamp - QIL4
Fast Medium Wave IR Lamp - QIL5
Fast Medium Wave IR Lamp - QIL6
Technical chart for Fast Medium Wave IR Lamp (8)
Fast Medium Wave IR Lamp - QIL8
Fast Medium Wave IR Lamp - QIL9
Fast Medium Wave IR Lamp - QIL10
Available Options
Vertical/horizontal operationGold/ceramic reflective coatingStar/triangle wire variantCustom specifications
