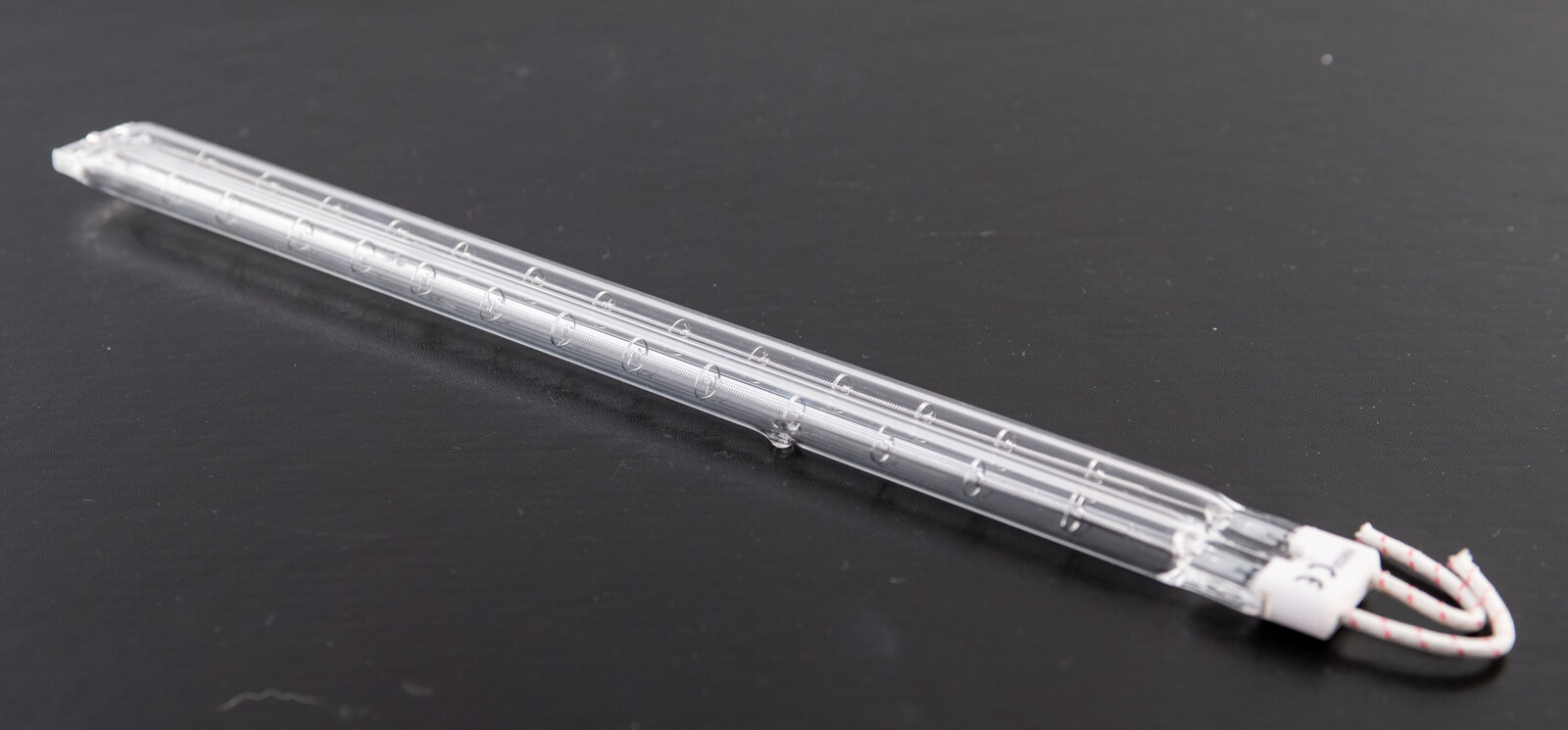

Twin Tube
Short Wave IR Lamp
Twin tube short wave infrared lamps combine superior heating efficiency with the enhanced strength and power concentration of the figure-8 twin tube design. Ideal for processes requiring rapid temperature rise and fall.
Specifications
Wavelength1-2 μm (SW); 0.8-2 μm (NIR)
Filament Temperature1800-2400°C
Response Time1-2 seconds
Max Length4.5M
Tube Diameters17×8, 23×11, 33×15 mm
Tube TypesB TYPE / C TYPE
Heating ElementTungsten filament
Features
- Made from high-purity transparent quartz, special figure-8 twin tube design
- Short wave (SW) wavelength range 1-2μm; Near infrared (NIR) range 0.8-2μm available on request
- Tungsten filament, vacuum-sealed with protective gas filling
- Instant heating and rapid cooling, reaches maximum temperature in approximately 1-2 seconds
- Filament temperature 1800-2400°C
- Maximum length up to 4.5M

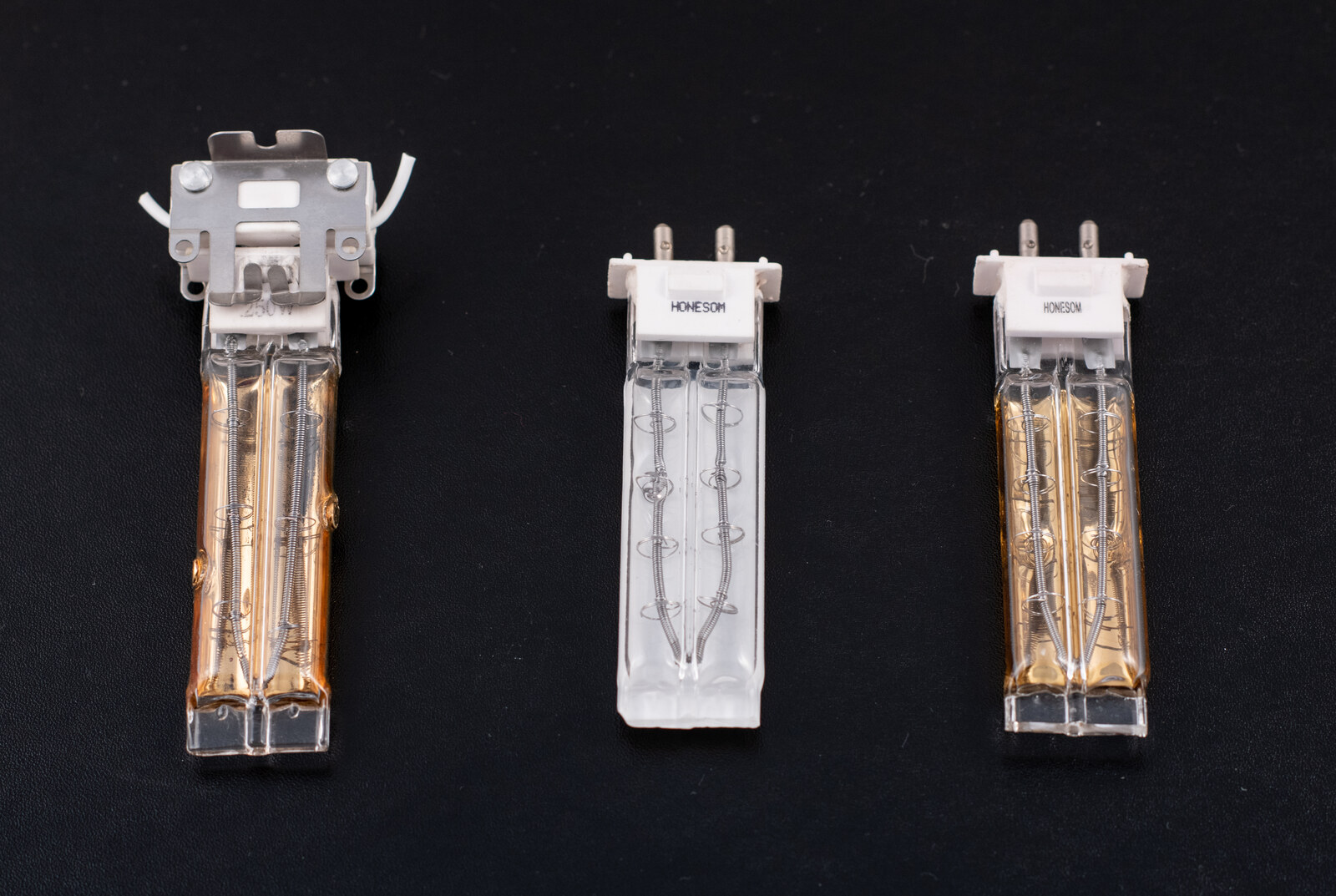

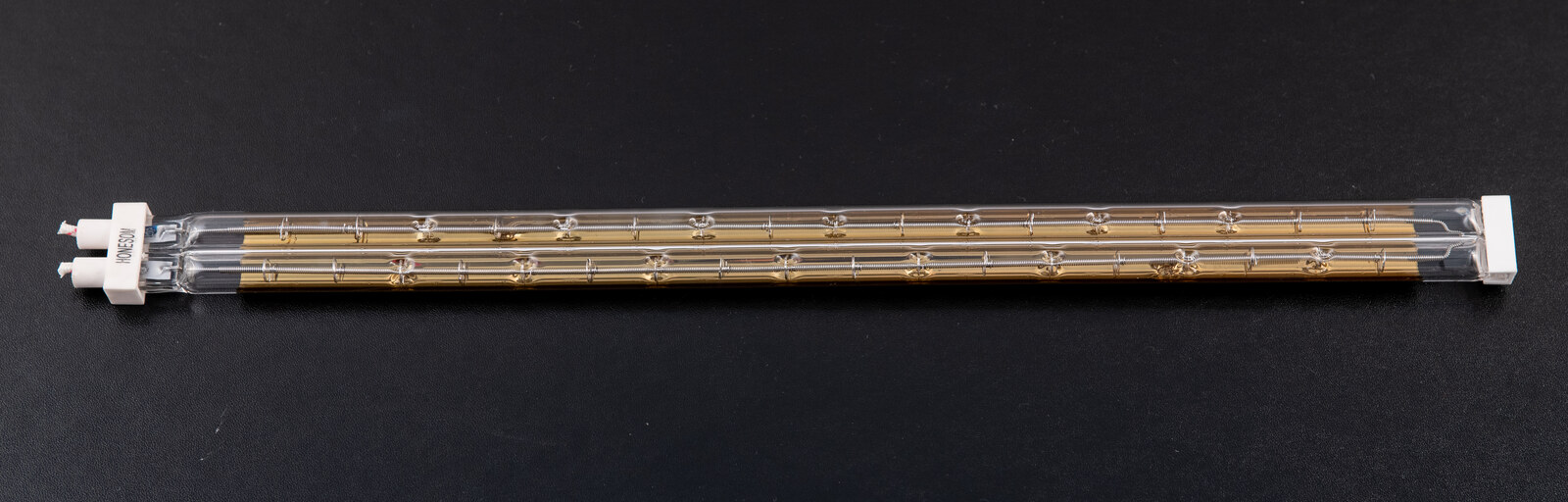

- Gold or ceramic coating on rear surface increases reflection and thermal efficiency
- Custom voltage, power, and length manufactured to customer requirements
- Available for vertical operation on request
Technical Charts

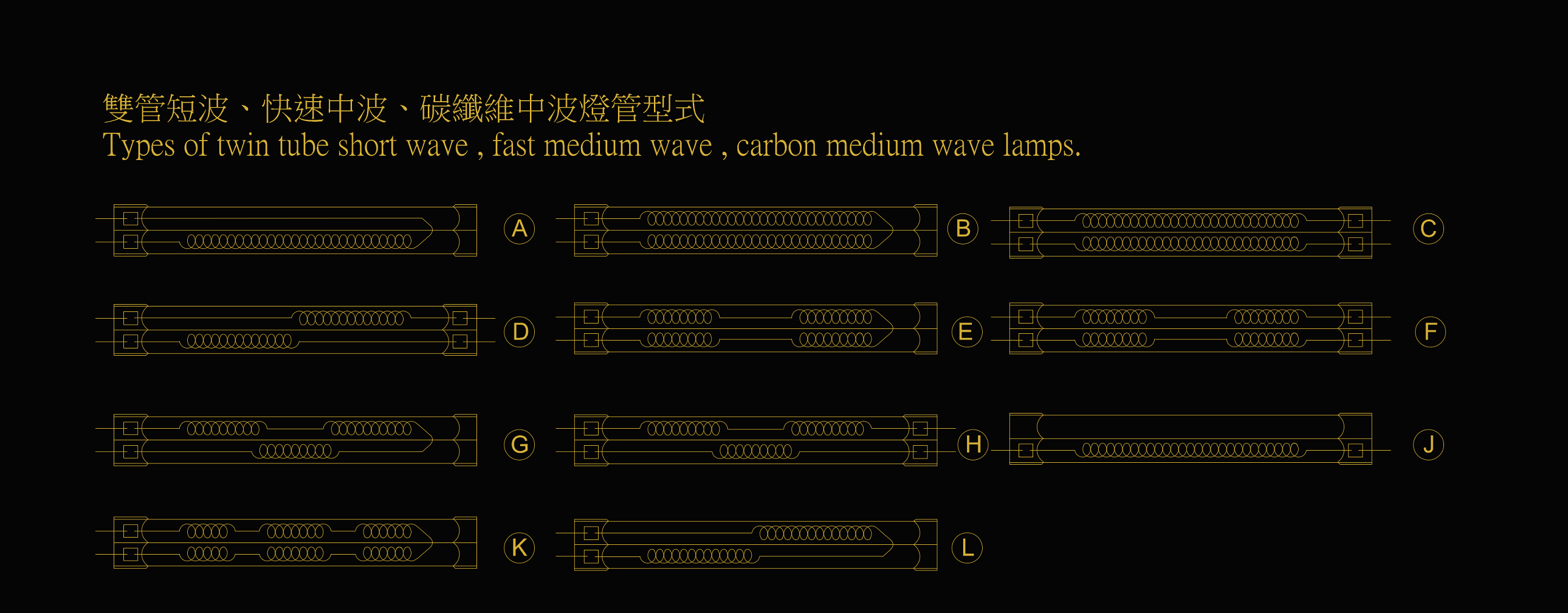

Types of Twin-Tube Short Wave, Fast Medium Wave, Carbon Medium Wave Lamps

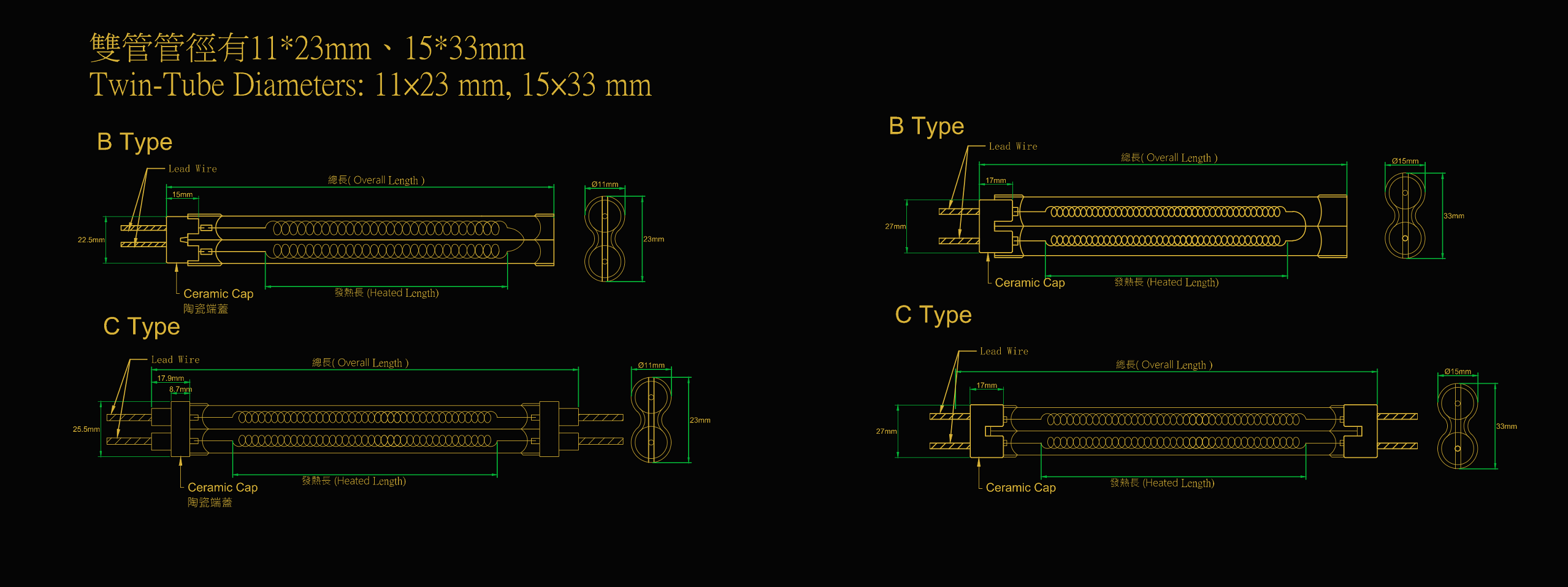

Twin-Tube Short Wave - B Type / C Type (11×23, 15×33 mm)
Available Options
Gold/ceramic reflective coatingVertical operationCustom voltage/power/lengthB TYPE / C TYPE configurations
