Twin Tube
Carbon Infrared Emitter

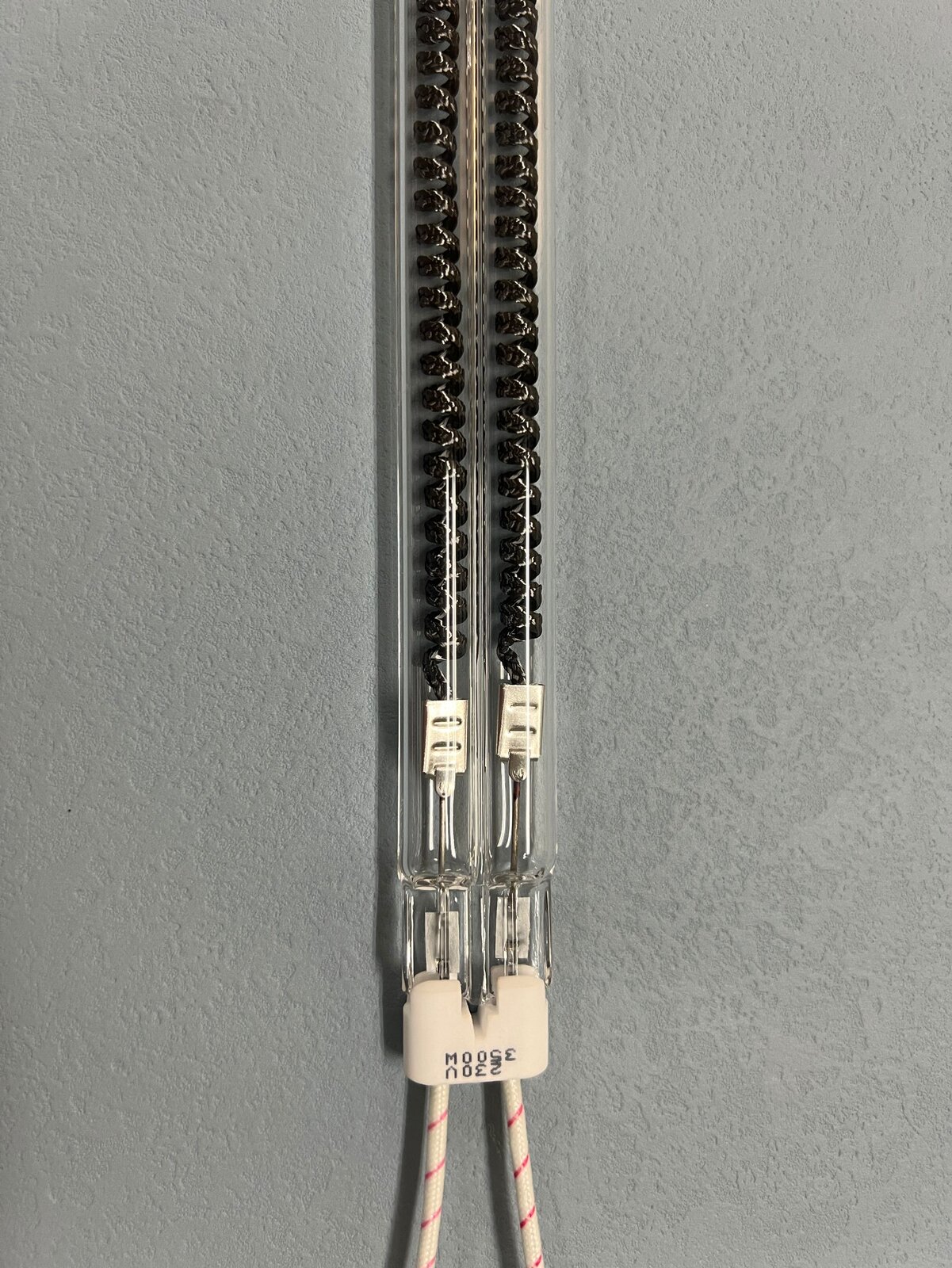

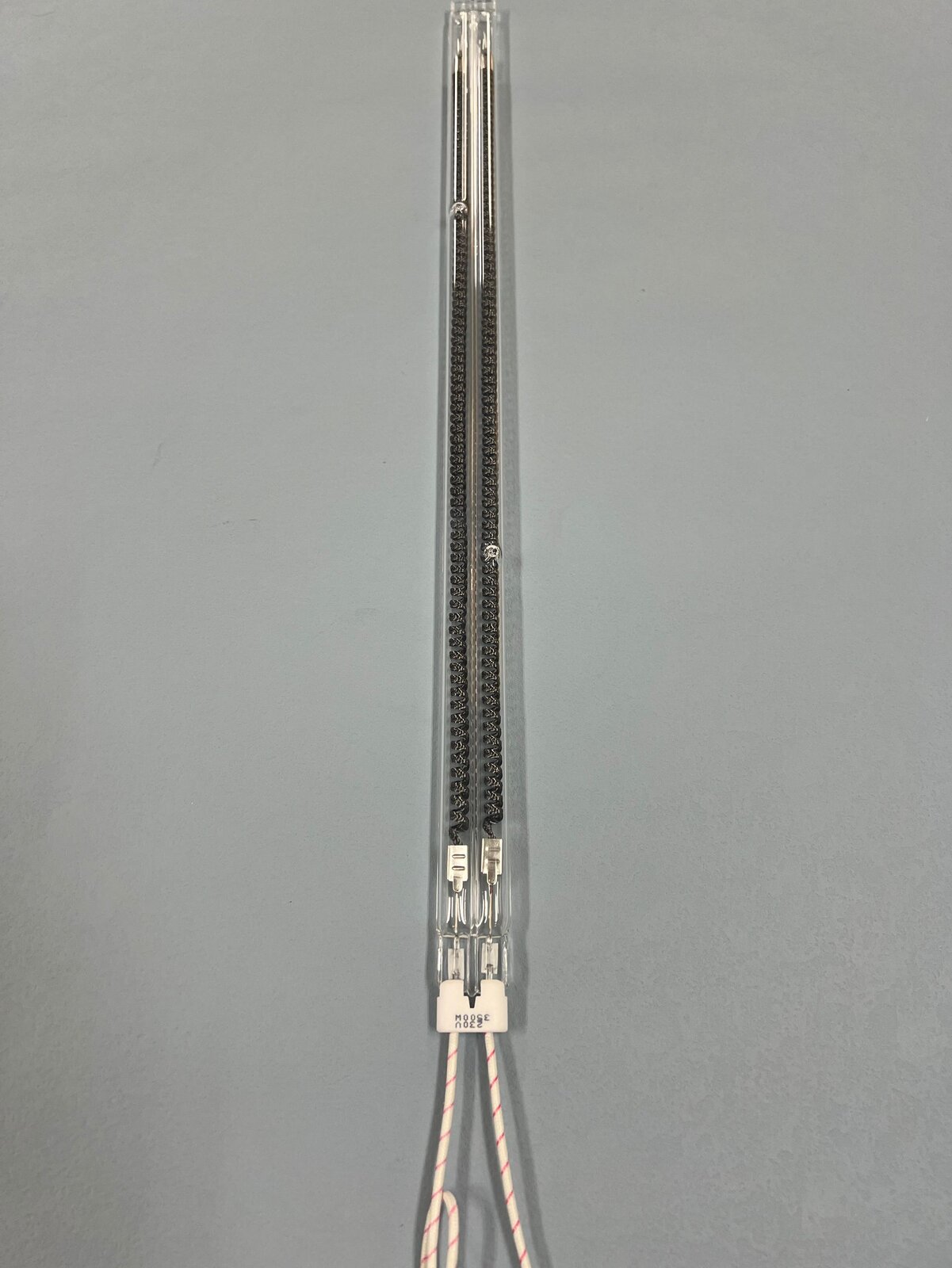

Twin tube carbon infrared emitters combine medium wave infrared heating with the powerful figure-8 twin tube design. Effective for heating plastics, transparent glass, water, adhesives, and most solvents.
Specifications
Wavelength2-4 μm
Filament TemperatureMax 1200°C
Response Time10-30 seconds
Max Length4.5M
Tube Diameters23×11, 33×15 mm
Heating ElementCarbon fiber
Features

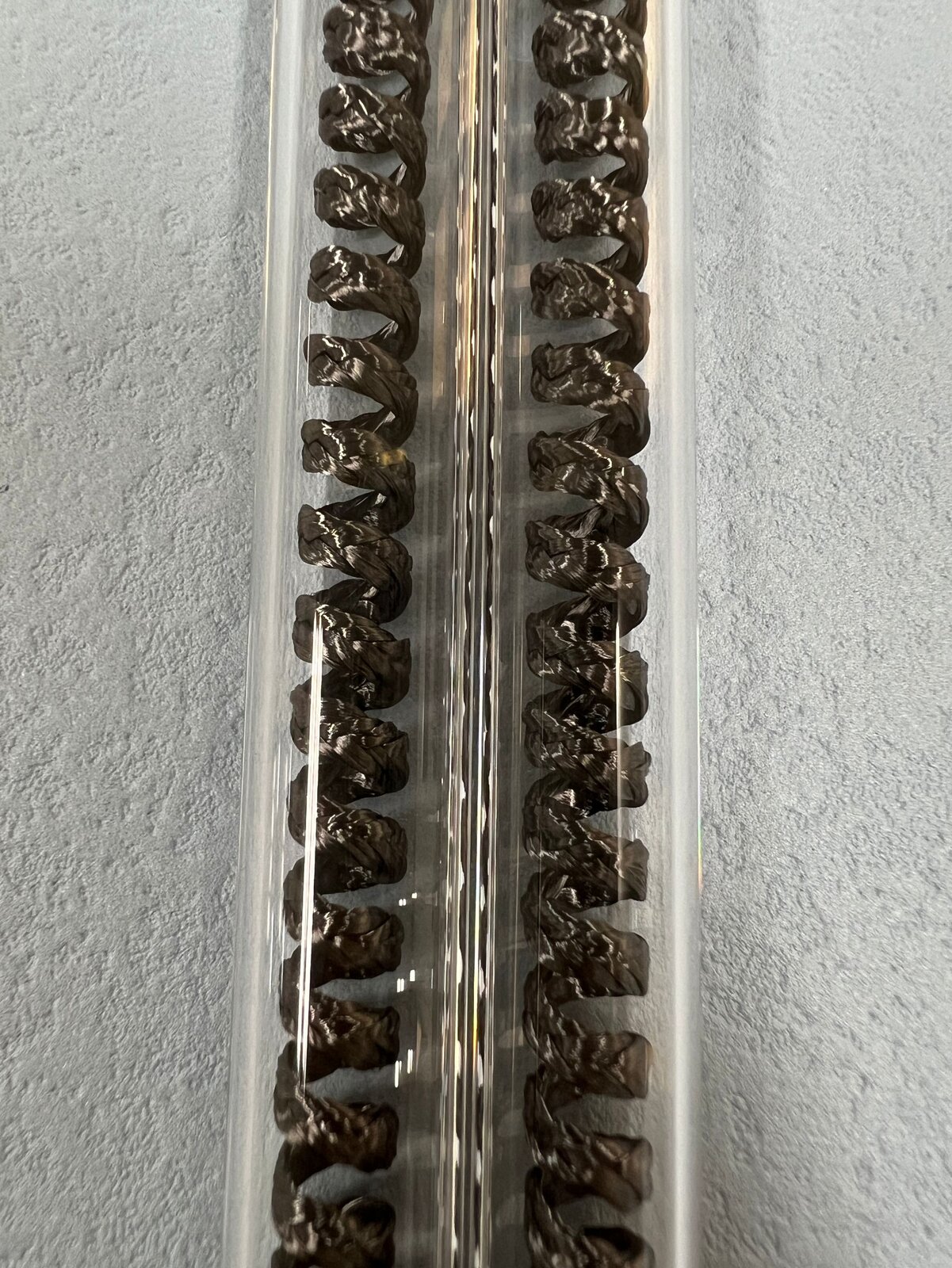

- Made from high-purity transparent quartz, special figure-8 twin tube design
- Carbon fiber heating element
- Filament temperature up to 1200°C maximum
- Reaches full heating output in approximately 10-30 seconds
- Infrared wavelength range 2-4μm
- Maximum length up to 4.5M
- Gold or ceramic coating available for enhanced reflection and thermal efficiency
- Custom power, voltage, and length manufactured to customer requirements
Applications
PlasticsGlassWaterAdhesivesSolventsCoating/ink drying

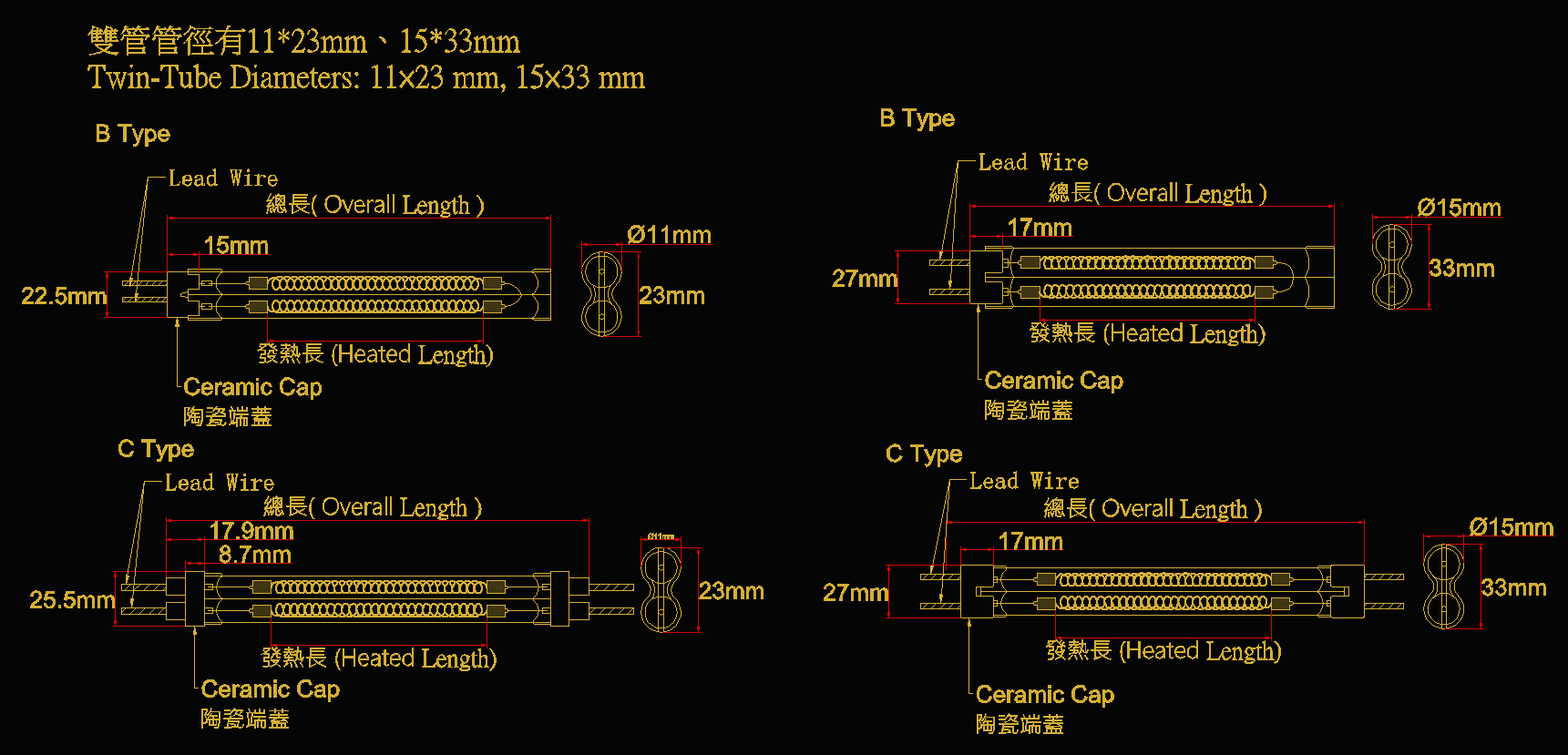

Technical Charts
Carbon Infrared Emitter - HONESOM
Available Options
Gold/ceramic reflective coatingCustom voltage/power/length
