Twin Tube
Medium Wave IR Lamp
Twin tube medium wave infrared lamps combine effective medium wave heating with the enhanced strength and power of the figure-8 design. Particularly effective for plastics, transparent glass, water, and solvent heating.
Specifications
Wavelength2-4 μm
Filament Temperature800-950°C
Response Time~30-60 seconds
Max Length4.5M
Tube Diameters17×8, 23×11, 33×15 mm
Tube TypesB TYPE / C TYPE
Heating ElementFe-Cr-Al or Ni-Cr resistance wire
Features

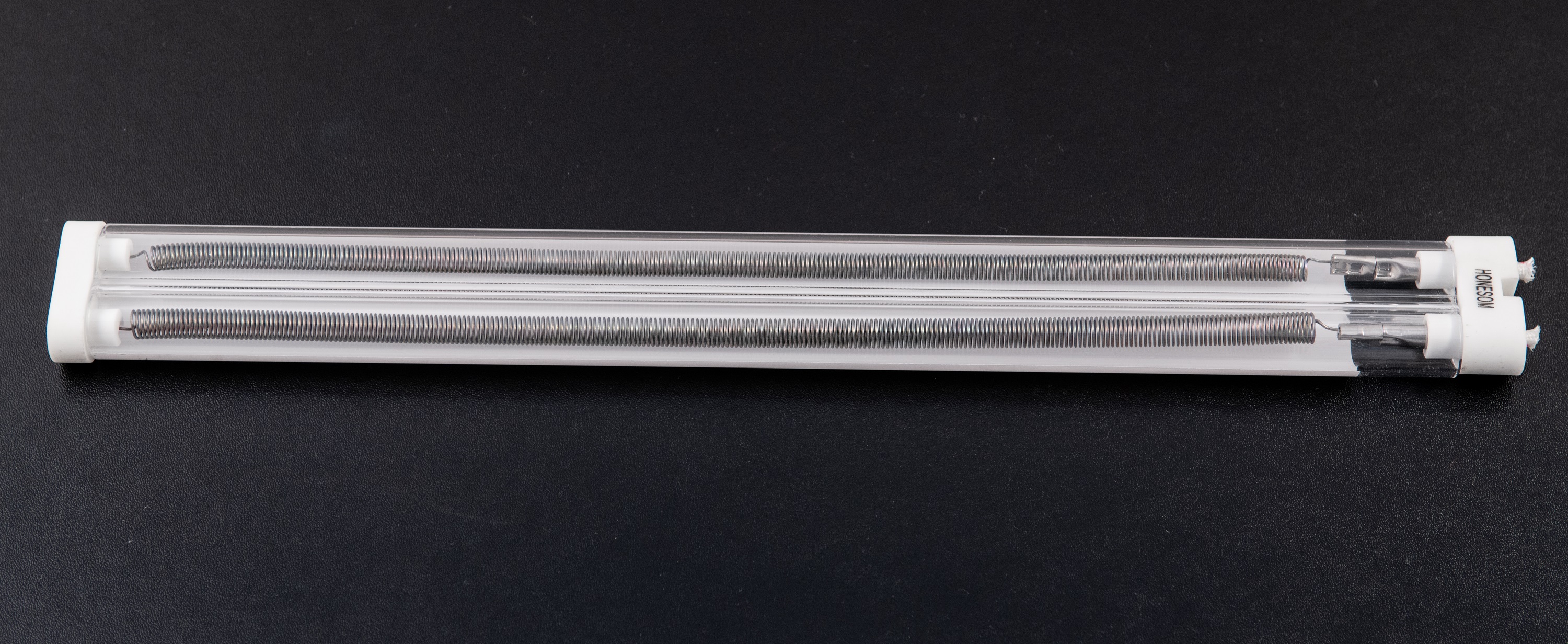

- Made from high-purity transparent quartz, special figure-8 twin tube design
- Fe-Cr-Al or Ni-Cr resistance wire heating element
- Filament temperature 800-950°C
- Reaches full heating output in approximately 30-60 seconds
- Infrared wavelength range 2-4μm
- Maximum length up to 4.5M

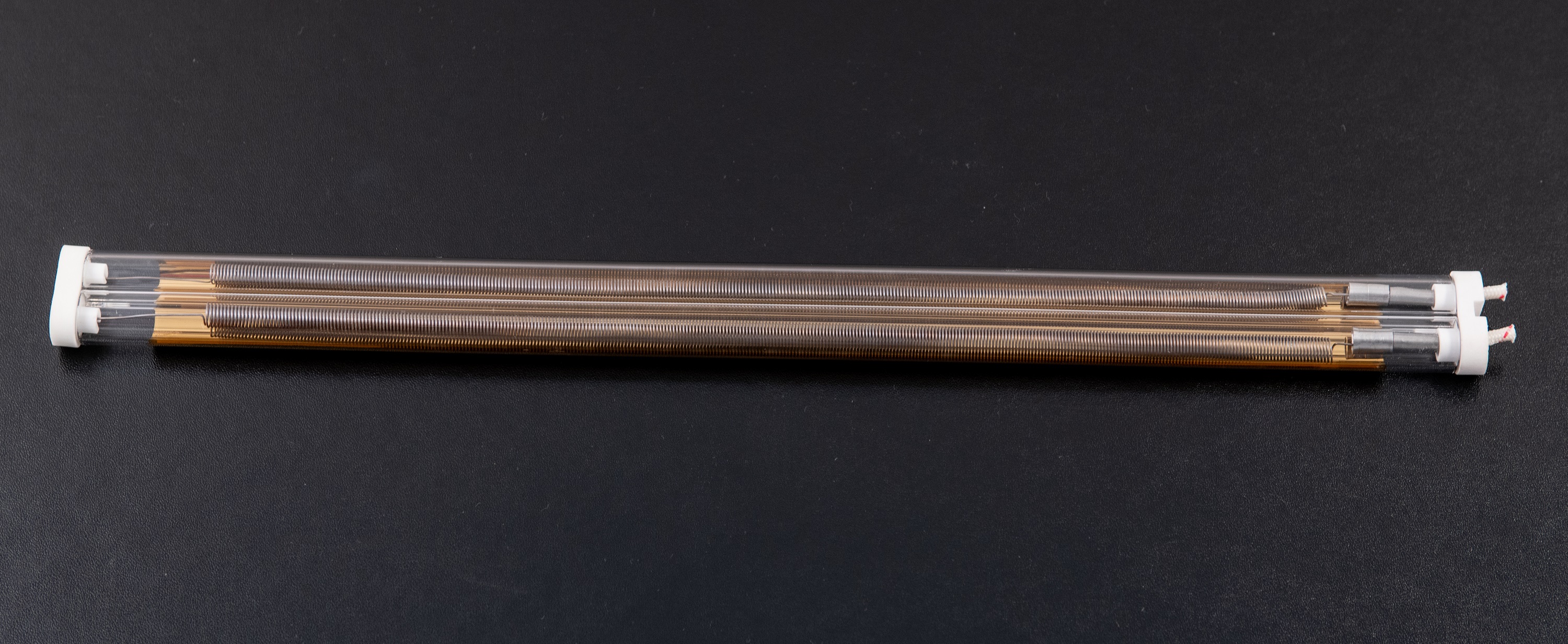

- Gold or ceramic coating available for enhanced reflection and thermal efficiency
- Custom power, voltage, and length manufactured to customer requirements
Applications
PlasticsTransparent glassWaterSolventsCoating/ink drying
Technical Charts

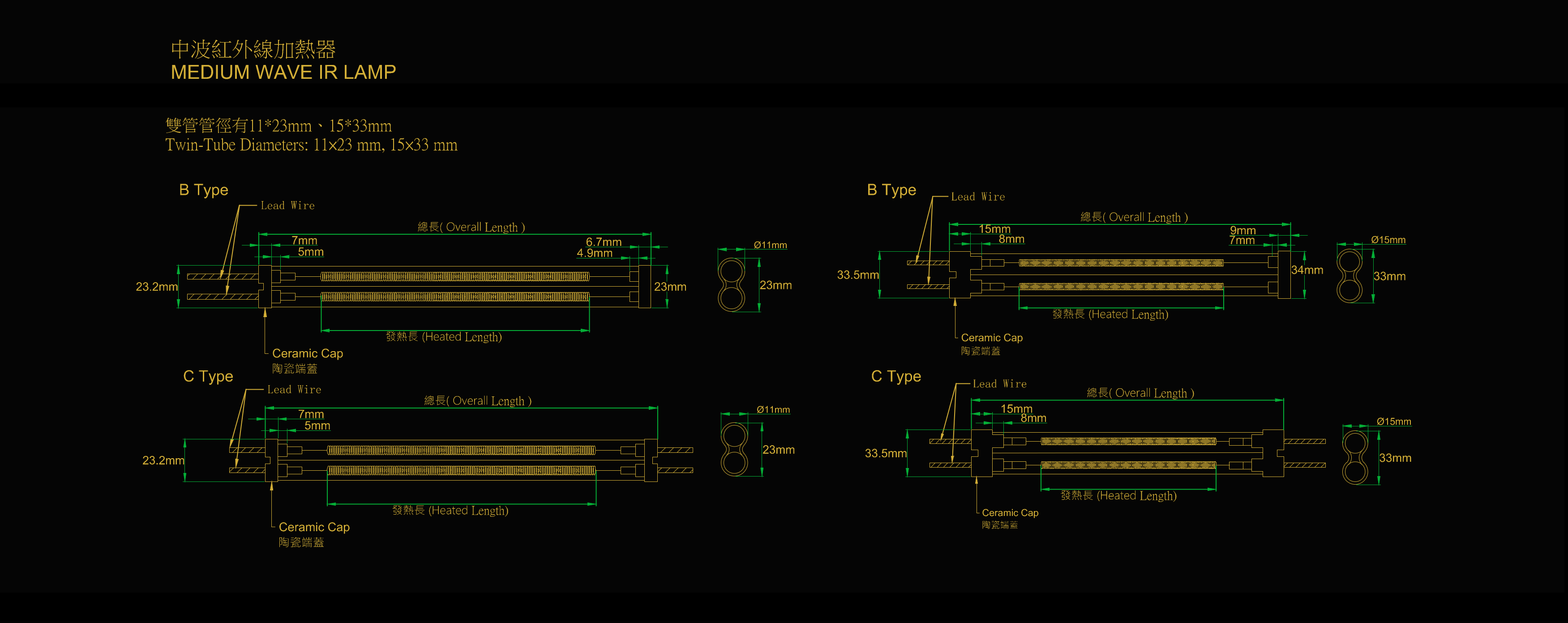

Twin-Tube Medium Wave - B Type / C Type (11×23, 15×33 mm)
Available Options
Gold/ceramic reflective coatingCustom voltage/power/lengthB TYPE / C TYPE configurations
