Choosing the Right IR Heater
In the field of industrial heating, selecting the right heat source is a precision calculation of energy matching. Every material has its unique "appetite" — its infrared absorption spectrum.
1. Core Logic: The Wavelength Matching Principle

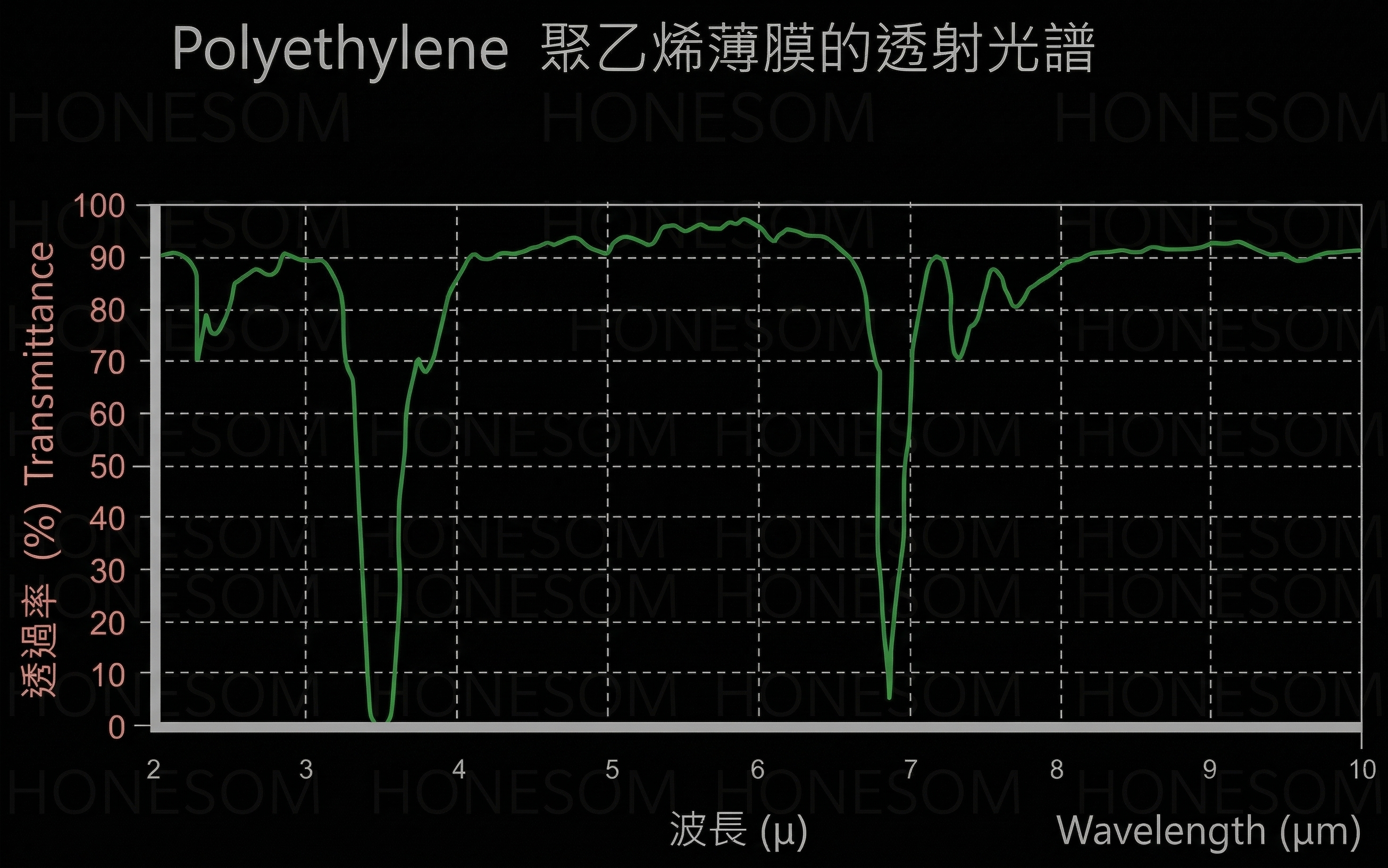

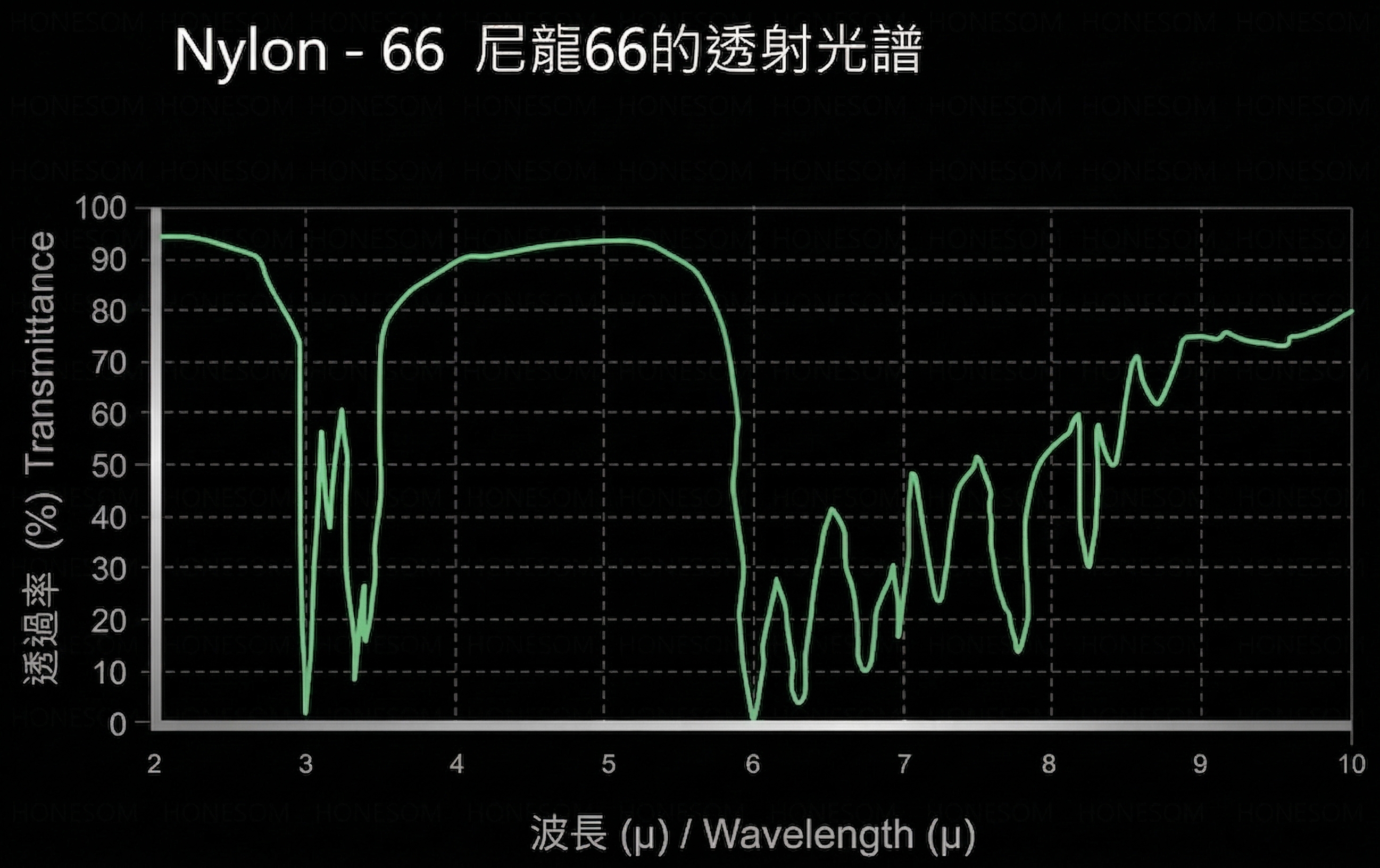

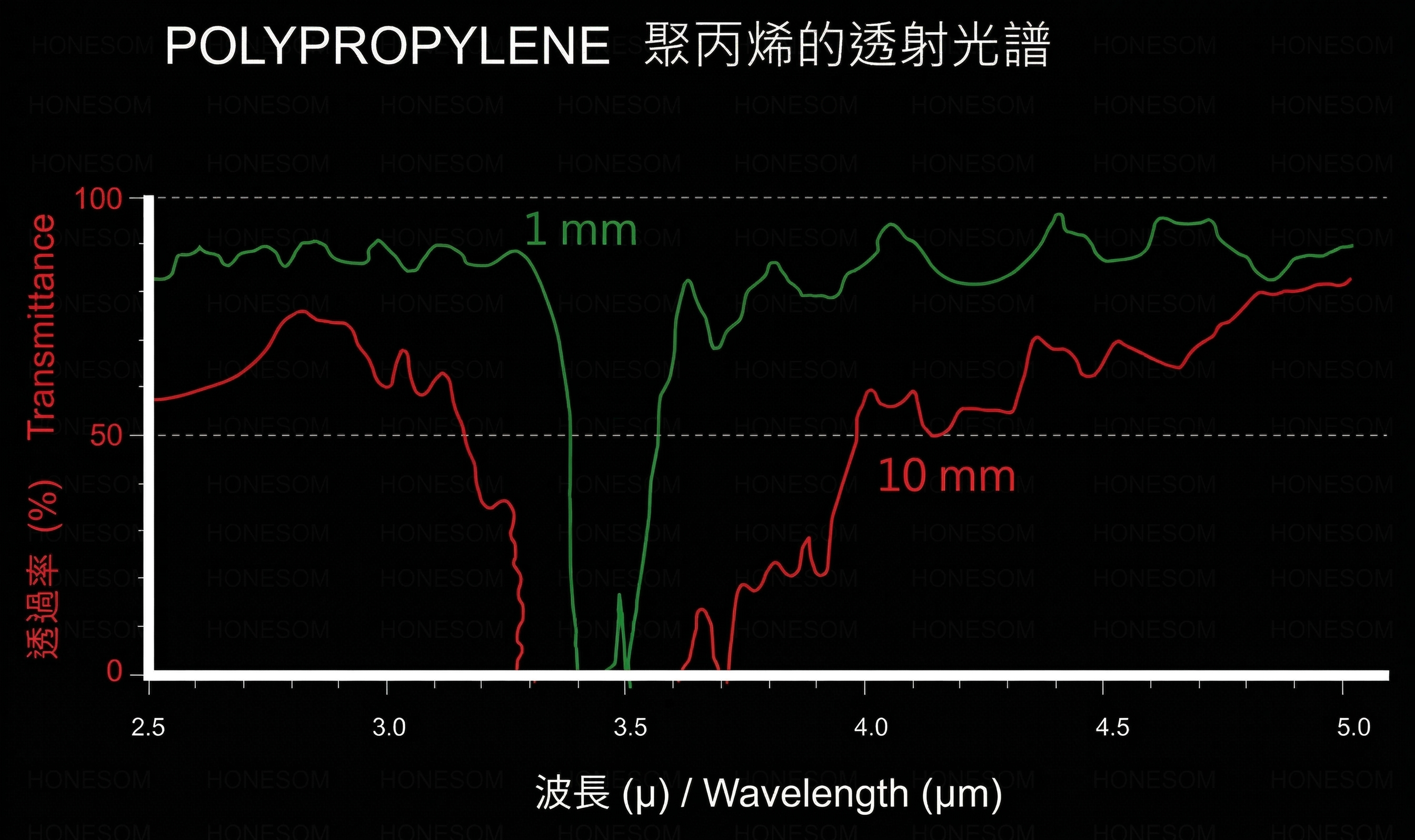

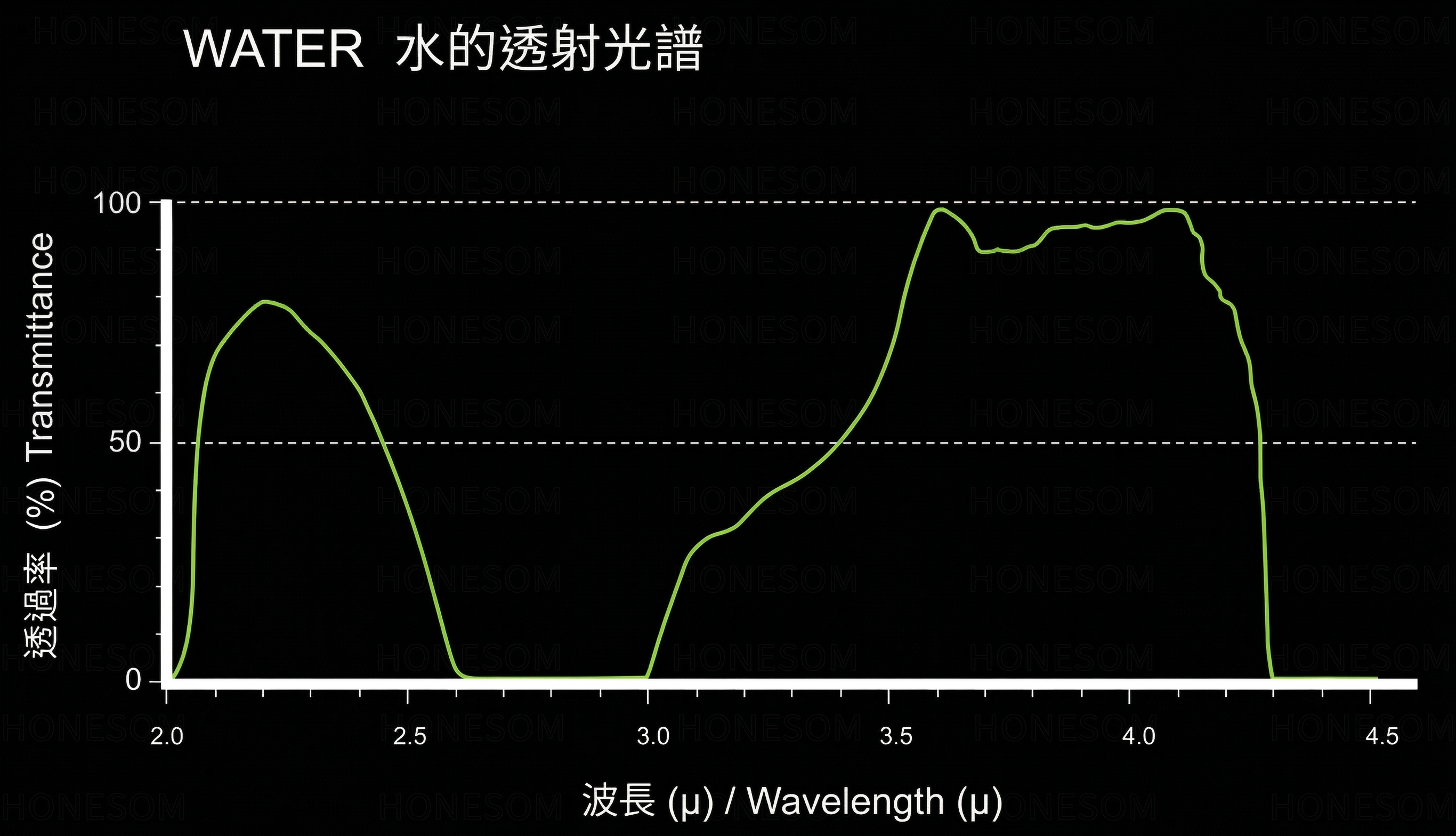

Different materials exhibit vastly different absorption intensities for different wavelengths of infrared. If the radiation wavelength of the heating element does not align with the material's absorption peak, energy will pass through or reflect away, resulting in significant electrical waste. Metals and silicon wafers have the highest absorption efficiency in the 1.0–2.0 μm short-wave range; polymers, water, glass, and organic solvents tend to absorb 2.0–4.0 μm medium-wave energy.

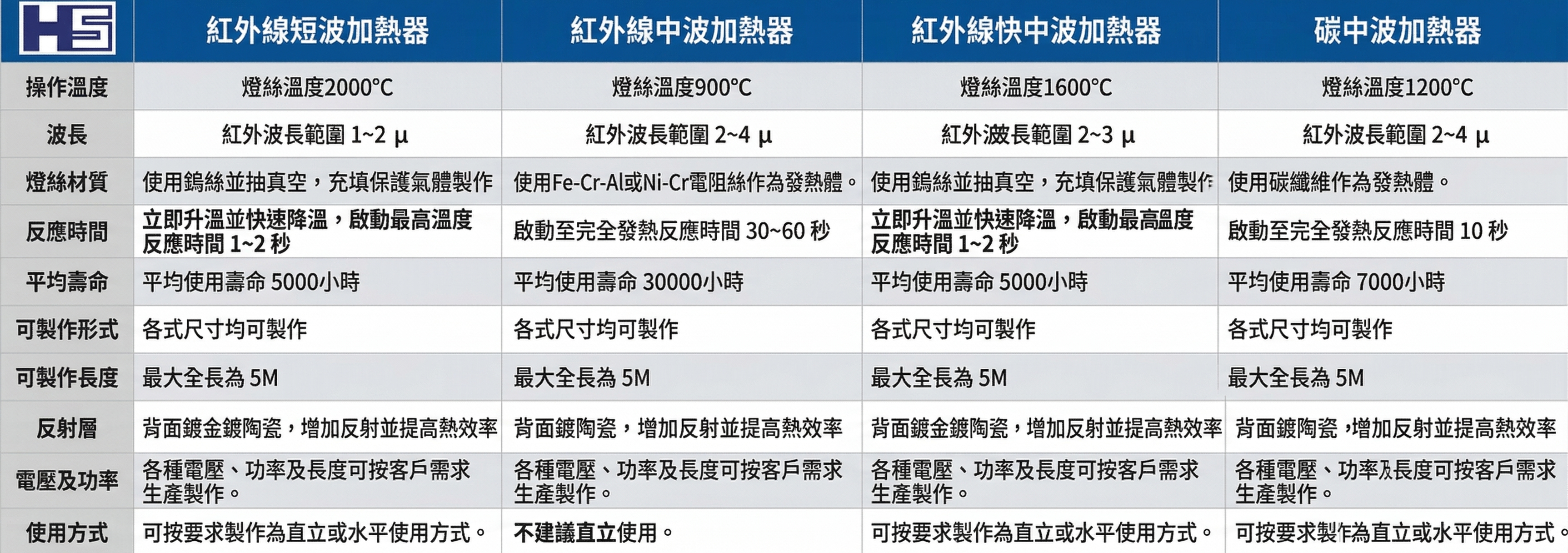

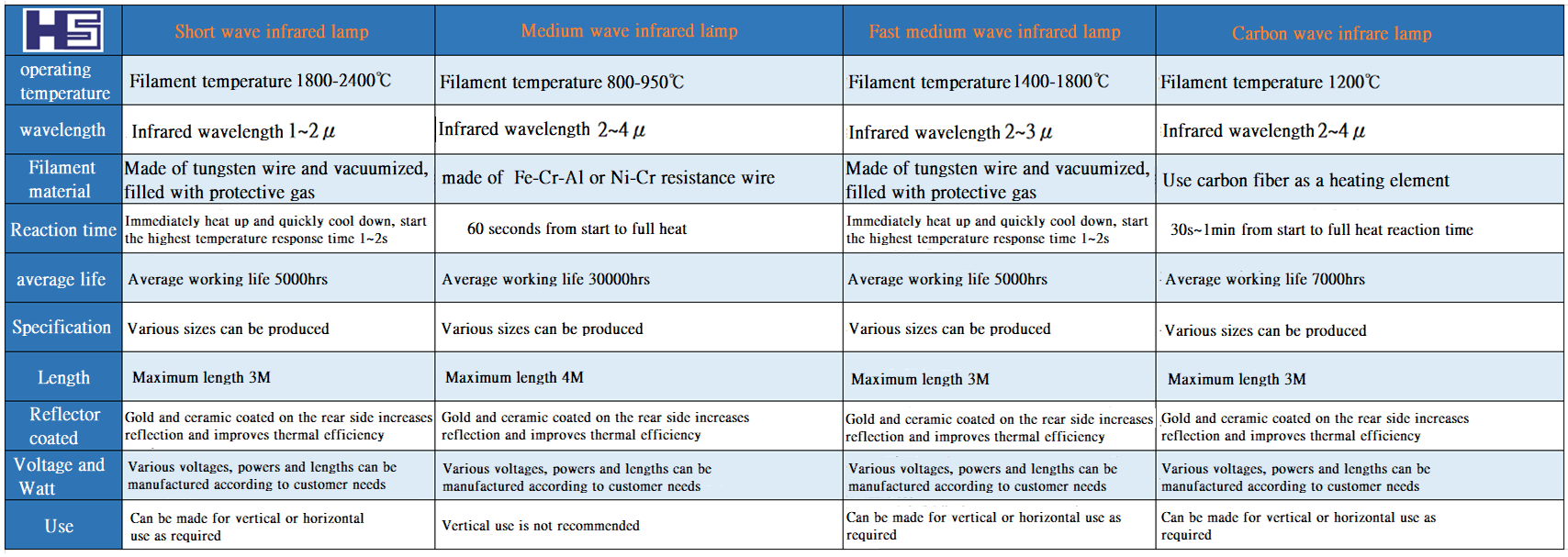

2. Comparative Parameters of Four IR Heating Technologies
Short-Wave IR: Filament temperature 2000 degrees C, peak wavelength 1–2 μm, tungsten filament (vacuum), response time 1–2 seconds, lifespan 5,000 h. Suitable for metal heating, silicon wafers, and ultra-rapid ramp-up processes.
Fast Medium-Wave IR: Filament temperature 1600 degrees C, peak wavelength 2–3 μm, tungsten filament (vacuum), response time 1–2 seconds, lifespan 5,000 h. Combines the speed of short-wave with the absorption rate of medium-wave.
Carbon Medium-Wave: Filament temperature 1200 degrees C, peak wavelength 2–4 μm, carbon fiber element, response time 10 seconds, lifespan 7,000 h. Suitable for gentle heating and precision coating drying.
Standard Medium-Wave IR: Filament temperature 900 degrees C, peak wavelength 2–4 μm, Fe-Cr-Al element, response time 30–60 seconds, lifespan 30,000 h. Suitable for large-area moisture drying and low-temperature heating.
3. Technical Details & Operational Considerations
Response Time Decision: For frequent start-stop cycles or precise temperature tracking, short-wave and fast medium-wave are the only viable options; medium-wave lamps with a 30,000-hour lifespan are ideal for continuous non-stop production lines. Installation Orientation: Short-wave, fast medium-wave, and carbon medium-wave can be used vertically or horizontally; standard medium-wave is not recommended for vertical installation. Reflective Coating Enhancement: Gold plating redirects 95% of rear-emitted thermal energy toward the illumination surface; ceramic coating provides superior high-temperature stability.
There is no single best lamp — only the most suitable solution. Please provide samples, and our technical team will perform an absorption spectrum analysis for you.
